Unable to upload ISO webui

Incus
1
alpine:~# incus storage volume import os alpine-virt-3.23.0_rc2-x86_64.iso archlinux-2024.08.03-x86_64 --type=iso
alpine:~# incus storage list
+------+--------+-------------+---------+---------+
| NAME | DRIVER | DESCRIPTION | USED BY |  STATE  |
+------+--------+-------------+---------+---------+
| os   | dir    |             | 2       | CREATED |
+------+--------+-------------+---------+---------+
alpine:~# incus storage volume list os
+--------+-----------------------------+-------------+--------------+---------+
|  TYPE  |            NAME             | DESCRIPTION | CONTENT-TYPE | USED BY |
+--------+-----------------------------+-------------+--------------+---------+
| custom | archlinux-2024.08.03-x86_64 |             | iso          | 0       |
+--------+-----------------------------+-------------+--------------+---------+
alpine:~#

The shell works fine, but the web doesn’t.

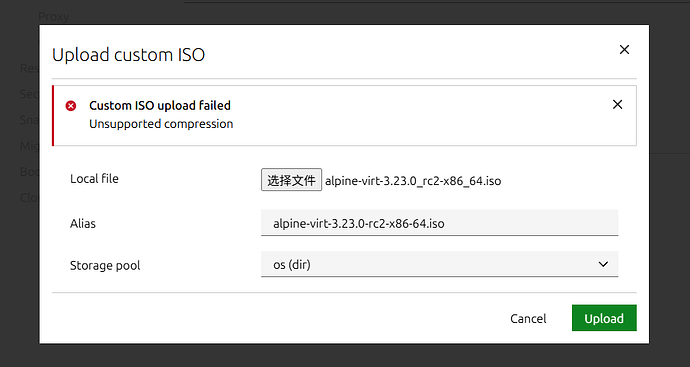

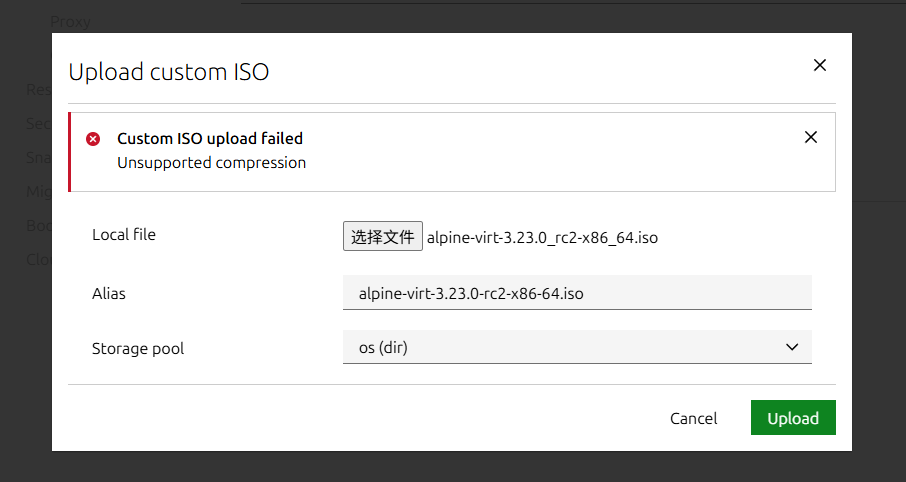

QQ20251208-213500
QQ20251208-213500906×482 21.9 KB

2

Can you look in developer mode in the web browser for what API call is being made exactly?

3

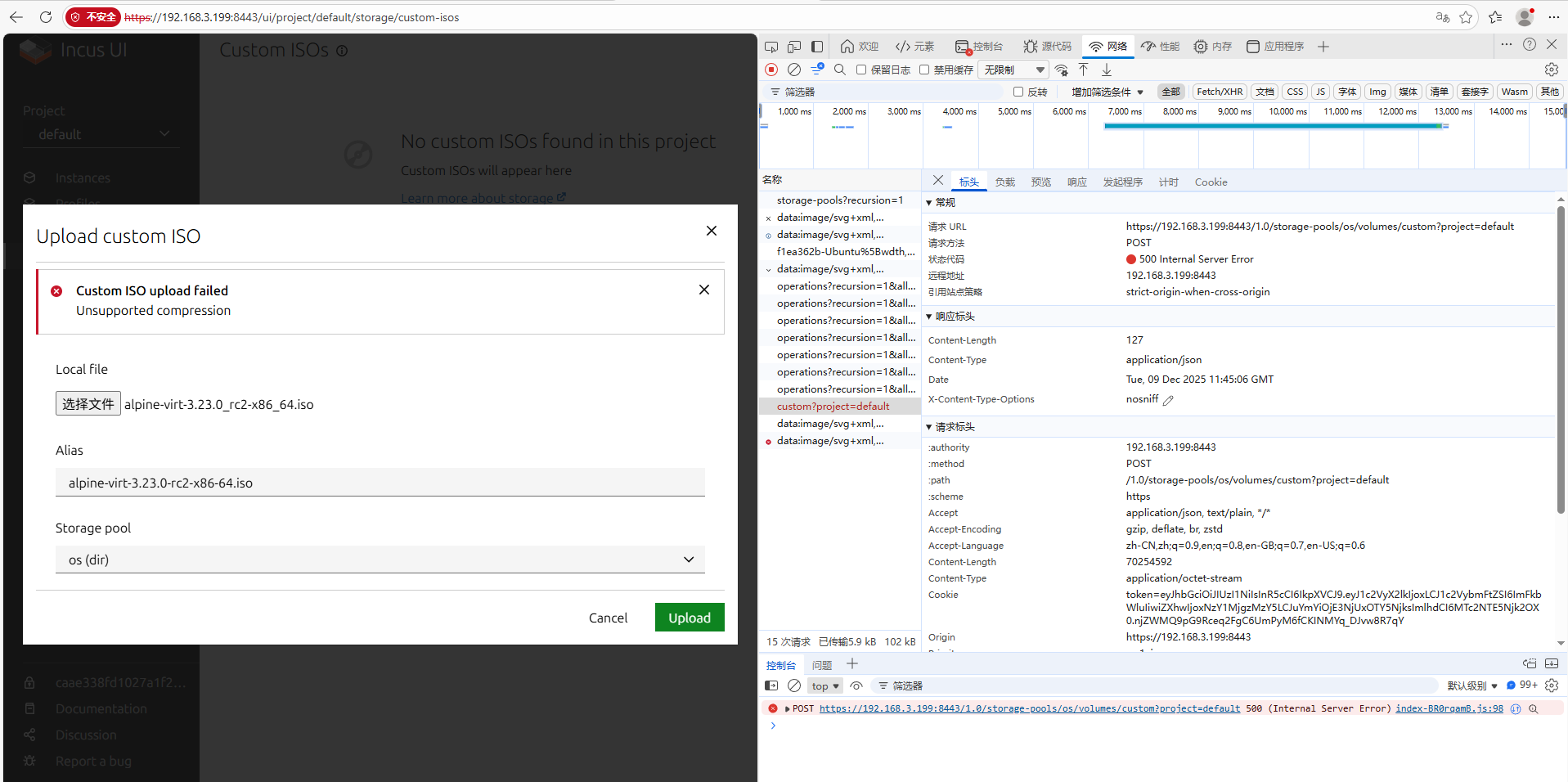

QQ20251209-194524
QQ20251209-1945241917×956 106 KB

4

I have another question: when uploading a rootfs image, is it necessary to include the metadata.yaml file?

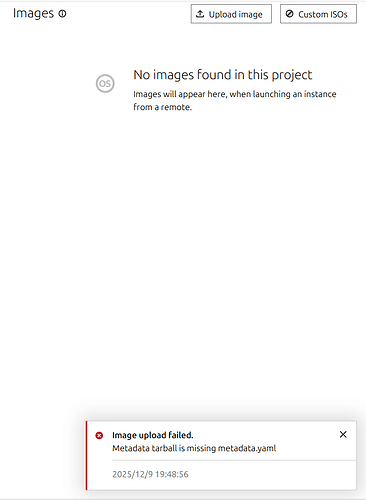

QQ20251209-194901
QQ20251209-194901675×922 21.1 KB

5

The ISO upload issue is because of Alpine’s packaging of the Incus UI.

They’re just using a clean export from Github which isn’t how this is supposed to be used. The Incus UI repository isn’t meant for direct consumption, it’s just used for development tracking of a set of change on top of the LXD UI repository.
To actually turn that into a (usually) functional UI, you need to also apply some automatic changes as seen in incus/patches/ui-canonical-renames.sed at daily · zabbly/incus · GitHub

Those generic renames aren’t included in the git repository as that would make rebasing and getting changes from the LXD UI quite a bit more annoying.

But without those renames, you have a UI that sets the wrong HTTP header when uploading an ISO, causing the issue you’re seeing.

6

For images, it looks like the UI only supports what we call “unified” images.
So that’s images made of a single file which then contains both the metadata and data.

7

This perfectly solves it, thank you for your patient explanation.
