Can't create VM instance on a thinpool (Main and backup partition tables differ!)

Adam · March 10, 2025, 12:43am

Hi,

I’ve encountered a strange problem with Incus 6.10.1 after upgrade. I think it’s probably related to my setup because I cannot find anything similar here, in issues or via search services. Basically I can’t create VM instances like this:

$ incus launch images:alpine/3.20/cloud testthin0 -s thin0 -c limits.memory=2GiB -c limits.cpu=8 --vm

I get this output:

Launching testthin0

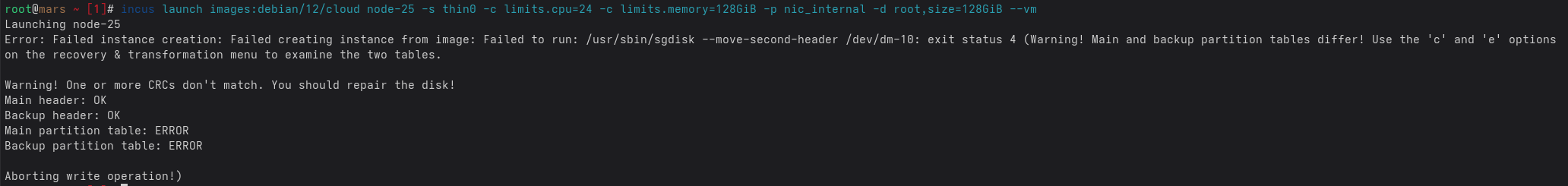

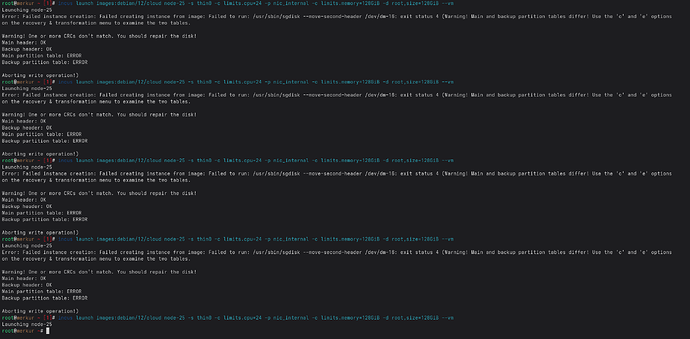

Error: Failed instance creation: Failed creating instance from image: Failed to run: /usr/sbin/sgdisk --move-second-header /dev/vg0/images_6dc6e0522da81db5c254e14e038860636e1e26edd3e6748d4a5f1d32df7c16aa.block: exit status 4 (Warning! Main and backup partition tables differ! Use the ‘c’ and ‘e’ options
on the recovery & transformation menu to examine the two tables.

Warning! One or more CRCs don’t match. You should repair the disk!
Main header: OK
Backup header: OK
Main partition table: ERROR
Backup partition table: ERROR

Aborting write operation!)

I have four different storage pools:

thin0 - thinpool storage on 2xNVMe drives in RAID 1
thin1 - thinpool storage on 4xSATA SSD in RAID10
pool0 - btrfs storage on the NVMe drives
pool1 - btrfs storage on the SATA drives

I can create VM just fine on both btrfs pools. The error is returned for both thinpools. I tested multiple images with the same result. Image storage is on pool0. I tested pool1 to check if the drives are affected but I get the same problem.

I have no idea how to debug this. It seems like the image is somehow broken but I have no idea why.

The issue is on my home server running Fedora Server. I have my notebook with similar setup (thinpool storage, same version of Incus, Fedora Desktop) and everything works just fine there. That leads me to conclusion that the problem is in my setup on the home server

Can I please ask you to help me to debug this issue?

stgraber · March 10, 2025, 2:37am

Might be worth checking if it’s a 512 vs 4096 sector size issue with the LVM pool maybe?

Adam · March 10, 2025, 10:45am

I don’t think it’s that. Both kind of drives are formatted to 512B

The thing is that everything was fine until recent update of the system where Incus 6.10.1 was included.

Adam · March 11, 2025, 10:04am

Just an update. I tested my notebook again with, as I mentioned, almost the same software setup. The VM instance can be created but it won’t boot. I think the issue is either related to Fedora or latest kernel 6.13.

stgraber · March 11, 2025, 4:05pm

Are you getting any errors in dmesg or journalctl?

Adam · March 11, 2025, 5:45pm

Before I answer I tried to return to kernel 6.12.7 and the issue remained.

I also tried to create a new thinpool (in remaining space of one of the RAID arrays) and it’s the same result.

Then I tried to image.os set to windows to disable IOMMU (not sure it was even enabled), same result.

And one note, one of the existing VMs, that was perfectly fine before, didn’t boot up after the issue occurred - the same behaviour as on my notebook - just stuck during boot.

Some errors are in Incus log:

The errors from 18:27 occurred when I tried to run:

incus launch images:debian/bookworm/cloud testthin0 -s thin0 -c limits.memory=2GiB -c limits.cpu=8 --vm -c security.secureboot=false

Today, without any change in the config, hw or system it started behaving the same as on my notebook. The VM instance is created but refuses to boot. The boot process is stuck here:

Isn’t possible the images could be broken in some way? The only change is updated Debian image downloaded today afternoon:

The same image is working fine on Debian 12 + Incus 6.9. I noticed a different logo during boot:

Isn’t possible there is a different BIOS image in Fedora? Something incompatible with whatever Incus has in its images?

No errors in dmesg:

stgraber · March 11, 2025, 10:00pm

Fedora is going to have its own EDK2 (firmware) and QEMU build, so that may be different from the ones in the Zabbly repository.

Adam · March 13, 2025, 4:50pm

So I did a few experiments and “fixed” it for both of my Fedora systems. I had Incus from ganto/lxc4/ repo.

https://copr.fedorainfracloud.org/coprs/ganto/lxc4/

I switched to Incus from Fedora’s main repo which is version 6.8. It still didn’t work but I noticed that if I delete all images from all projects and let Incus to download them again it starts working as before.

So I think Incus 6.10 treats images differently during importing into the local storage and as result those images are not compatible with whatever is specific for Fedora.

The deleted images and the newly downloaded images had the same fingerprints.
