Criticize my setup

tibeer · November 26, 2025, 9:14am

Hi there!

I am fairly new to incus and I’ve experimented now quite a bit with it. Now I want to have some freedback about my setup. My ultimate goal was to have incus and the incus UI accessible any time from internet, similar to my already existing other services like Teamspeak3, etc, which i achived. What is still pending is the HA-Proxy VM inside incus, so i can access the VMs also via DNS from the internet.
Background information: This is a home setup. My ISP rotates my public IPv4 and IPv6 adresses randomly or on a router reboot.

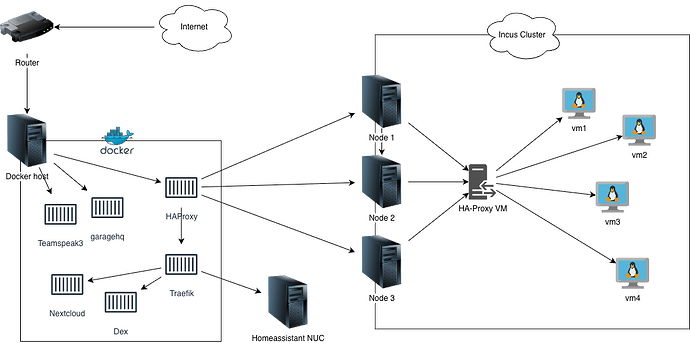

Here is a high level ingress view of my setup:

The cluster is made up of three Beelink EQR6 machines (6800U, 32GB RAM, single 1TB NVME SSD). The docker host is a selfmade machine of old parts (i7 4790k, 16GB RAM, 512GB SATA SSD).

The Incus cluster is installed with incus-deploy. And if I want to start over, I just reboot - the machines boot via PXE and install a fresh Ubuntu 24.04.

Since I use the integrated ACME client of Incus, I needed to put a TCP Proxy (HAProxy in this case) upfront my existing traefik. This way, Incus can request its own certificates and traefik takes care of other services. HAProxy can also round-robin WAN connections to any of the nodes so any machine can go down. I also spun up dex which acts as a simple lightweight OIDC provider for incus.

Here is my technical configuration

incus-deploy inventory

all:
  vars:
    incus_name: "baremetal"
    incus_release: "stable"
    ovn_name: "baremetal"
    ovn_az_name: "zone1"
    ovn_release: "distro"
  children:
    baremetal:
      vars:
        ansible_user: root
        ansible_become: false
        incus_init:
          config:
            "core.https_trusted_proxy": "192.168.20.20,192.168.30.1"
            "oidc.audience": "incus-ui"
            "oidc.claim": "email"
            "oidc.client.id": "incus-ui"
            "oidc.issuer": "https://dex.myrealdomain.de/dex"
            "oidc.scopes": "openid email profile"
            "acme.domain": "incus.myrealdomain.de"
            "acme.email": "incus@myrealdomain.de"
          network:
            LOCAL:
              type: macvlan
              local_config:
                parent: eno1
              description: Directly attach to host networking
            UPLINK:
              type: physical
              config:
                ipv4.gateway: "192.168.30.1/24"
                ipv6.gateway: "fd30:30::1/64"
                ipv4.ovn.ranges: "192.168.30.20-192.168.30.99"
                dns.nameservers: "192.168.30.1"
              local_config:
                parent: enp2s0
              description: Physical network for OVN routers
            default:
              type: ovn
              config:
                network: UPLINK
              default: true
              description: Initial OVN network
          storage:
            local:
              driver: btrfs
              description: Local storage pool
        incus_roles:
          - cluster
          - ui
        ovn_roles:
          - host
      hosts:
        node1:
          ansible_host: 192.168.30.11
          ovn_roles:
            - central
            - host
        node2:
          ansible_host: 192.168.30.12
          ovn_roles:
            - central
            - host
        node3:
          ansible_host: 192.168.30.13
          ovn_roles:
            - central
            - host

I picked an IPv6 address of the fd30 range to do NAT66, since I was unable to forward a public /64 network which is resistant to my ISPs address rotation.
The DNS records are updated with a cron job every hour calling terraform. Since I use HAProxy for loadbalancing anyhow, it is enough to use the docker host public IPv6 address, I do not need to public IPs of the individual nodes.

The incus nodes reside in VLAN30, my docker host has two NICs (primary NIC and route is in VLAN20, second NIC is in VLAN30), thus the two trusted proxies.

For the OVN ranges, I picked something that is in the same VLAN 30 as the nodes, not sure if this is correct or not. Also I made sure the range stops before the DHCP range for that VLAN, also not sure if needed, but at least if I spawn containers or VMs with the “LOCAL” network, the instances get their IP from the DHCP server of the router. I even added a DHCP script there to make them accessible by their hostname via dns, e.g. debian1.incus.lan

For the moment I am only using btrfs because the SSDs inside the nodes are on lower side of quality. Still, I do not expect high workloads in the future on them as I plan to use the cluster only for testing purposes. I will mostlikely though try to add linstor to experiment with redundancy if a node goes down. Still have to figure out how to integrate this into the existing LVM, as it is only a single physical disk. Ceph is definitely not going on this machines, I want to keep the SSDs alive as long as possible.

So please go ahead, tell me what I totally made wrong, could improve, what you recommend (e.g. a second disk in the machines is also a valid recommendation ). Also feel free to ask questions about further details (configs of HAProxy, dex, whatever). Hope you enjoyed reading it.

jarrodu · November 26, 2025, 1:16pm

Did you consider Authelia? I am using it with lldap for single sign on.

tibeer · November 26, 2025, 1:55pm

Not for the moment. I know Authelia and lldap, but dex was the quickest and easiest way for me to get things going. Is there any special value Authelia can add?

jarrodu · November 26, 2025, 2:11pm

I am not familiar with dex, so it is hard to compare. I picked Authelia because I already use Caddy and Step CA. So adding Authelia SSO was as simple as updating my Caddyfile template.

It also has support for two factor authentication. I have not used that feature yet.

tibeer · November 26, 2025, 4:02pm

Dex is basically an “aggregator” for OpenID connect. You can connect easily connect to multiple other Connectors | . I use GitHub, so every user in my Org can login with GitHub into Incus. Local accounts are possible too. Below is a config example.

dex config

issuer: "https://dex.myrealdomain.de/dex"

web:
  http: 0.0.0.0:5556

staticClients:
  - id: incus-ui
    redirectURIs:
      - https://incus.myrealdomain.de/oidc/callback
      - /device/callback  # used for cli authentication
    name: Incus UI
    public: true

storage:
  type: sqlite3
  config:
    file: /var/dex/dex.db

enablePasswordDB: true

oauth2:
  responseTypes:
    - code
  skipApprovalScreen: true
  alwaysShowLoginScreen: false

staticPasswords:
  - email: tibeer@myrealdomain.de
    hash: mypasswordhash
    userID: '1'
    username: tibeer

connectors:
  - type: github
    id: github
    name: GitHub
    config:
      clientID: myclient
      clientSecret: myclientsecret
      redirectURI: https://dex.tibeer.de/dex/callback
      orgs:
        - name: myorgname
      teamNameField: slug
      useLoginAsID: false

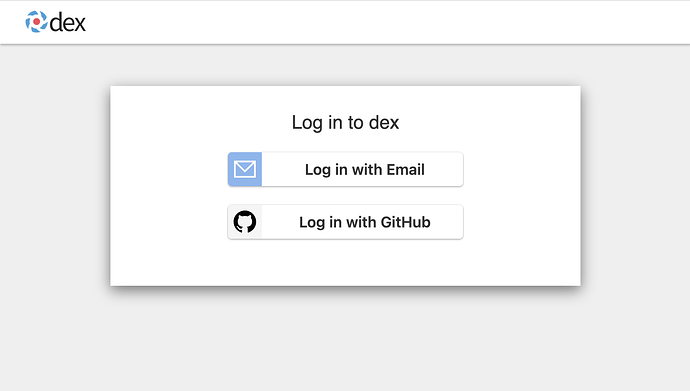

And here is a screenshot of the login ui:
