FreeBSD VM with more than 2 GB RAM crashes on incus 6.14 while working on LTS 6.0.4

Hello,

first of all, thank you for Incus and your dedication to the project! What a great software.

Description
We have some FreeBSD VM (OPNSense 25.1 / or PFSense 2.8.0) that we use. When we switched from Incus LTS 6.0.4 to Incus 6.14 the FreeBSD VMs do not boot anymore with more than 2 GB RAM assigned. For every other OS, no problems.

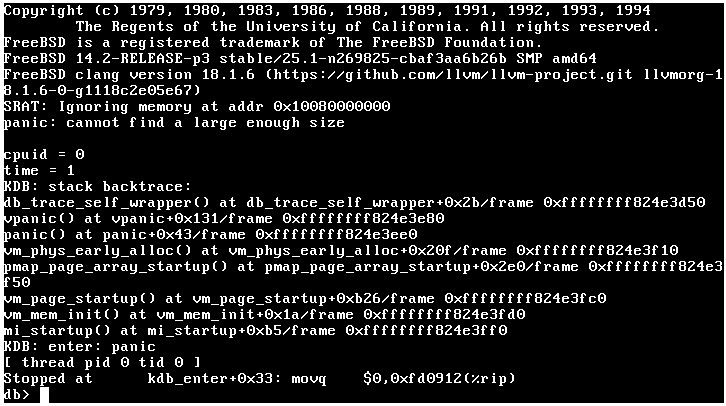

If it is more (e.g. 4 GB) the FreeBSD VM throws the following error:

Reducing the RAM to 2 GB or below, the FreeBSD VMs function as expected. I tried it with two fresh debian trixie bare metal installations on the same host with fresh OPNSense and PFSense installations. When using LTS and more than 2 GB RAM not problem, when using 6.14 the above crash happens.

Incus Config / Steps to reproduce

Installed a fresh and clean debian trixie RC1; one time with Incus LTS 6.0.4 and one time with Incus 6.14 (same host, bare metal) follwoing the exact steps form GitHub - zabbly/incus: Incus package repository

I did not upgrade or copy things or vm; it was two complete clean new Debian OS installs and vm creations to test the difference between Incus versions.

Create a new VM with exactly the same config (see below) used on 6.0.4 and then on 6.14 with OPNsense 25.1 ISO (same behavior with PFSense 2.8.0)

architecture: x86_64
config:
  limits.cpu: "2"
  limits.memory: 4GiB
  security.secureboot: "false"
  volatile.cloud-init.instance-id: cf3ee5e9-ea25-4318-b165-d21210862955
  volatile.eth0.host_name: tap27ebefbf
  volatile.eth0.hwaddr: 10:66:6a:db:f4:e3
  volatile.last_state.power: RUNNING
  volatile.uuid: cf713c67-9bca-4324-90c1-2a6104872098
  volatile.uuid.generation: cf713c67-9bca-4324-90c1-2a6104872098
  volatile.vm.definition: pc-q35-9.0
  volatile.vsock_id: "1118946314"
devices:
  iso-volume:
    boot.priority: "10"
    pool: default
    source: OPNsense-25.1-dvd-amd64.iso
    type: disk
  root:
    path: /
    pool: default
    size: 32GiB
    type: disk
ephemeral: false
profiles:
- default
stateful: false
description: test

Start the VM. The error from section “Description” occurs on Incus 6.14 with more than 2 GB RAM, not on Incus LTS 6.0.4.

Any Ideas what could cause this?

Can you show the content of /run/incus/NAME/qemu.conf?

Sure. Here the file content from 6.14:

# Machine
[machine]
graphics = "off"
accel = "kvm"
usb = "off"
type = "q35"

[global]
driver = "ICH9-LPC"
property = "disable_s3"
value = "1"

[global]
value = "0"
driver = "ICH9-LPC"
property = "disable_s4"

[boot-opts]
strict = "on"

# Memory
[memory]
slots = "8"
size = "4096M"
maxmem = "1048576M"

# CPU
[smp-opts]
cpus = "1"
maxcpus = "32"

[object "mem0"]
qom-type = "memory-backend-memfd"
size = "4096M"
share = "on"

[numa]
type = "node"
nodeid = "0"
memdev = "mem0"

# Firmware (read only)
[drive]
file = "/opt/incus/share/qemu/OVMF_CODE.4MB.fd"
if = "pflash"
format = "raw"
unit = "0"
readonly = "on"

# Firmware settings (writable)
[drive]
if = "pflash"
format = "raw"
unit = "1"
file = "/dev/fd/4"

# Qemu control
[chardev "monitor"]
path = "/run/incus/opnsense/qemu.monitor"
backend = "socket"
server = "on"
wait = "off"

[mon]
chardev = "monitor"
mode = "control"

# Console
[chardev "console"]
size = "1048576"
backend = "ringbuf"

# VM core info driver
[device "qemu_vmcoreinfo"]
driver = "vmcoreinfo"

[device "qemu_pcie0"]
chassis = "0"
multifunction = "on"
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.0"

# Balloon driver
[device "qemu_balloon"]
addr = "00.0"
multifunction = "on"
driver = "virtio-balloon-pci"
bus = "qemu_pcie0"

# Random number generator
[object "qemu_rng"]
qom-type = "rng-random"
filename = "/dev/urandom"

[device "dev-qemu_rng"]
driver = "virtio-rng-pci"
bus = "qemu_pcie0"
addr = "00.1"
rng = "qemu_rng"

# Input
[device "qemu_keyboard"]
bus = "qemu_pcie0"
addr = "00.2"
driver = "virtio-keyboard-pci"

# Input
[device "qemu_tablet"]
addr = "00.3"
driver = "virtio-tablet-pci"
bus = "qemu_pcie0"

# Vsock
[device "qemu_vsock"]
driver = "vhost-vsock-pci"
bus = "qemu_pcie0"
addr = "00.4"
guest-cid = "2430697077"
vhostfd = "3"

# Virtual serial bus
[device "dev-qemu_serial"]
bus = "qemu_pcie0"
addr = "00.5"
driver = "virtio-serial-pci"

# Serial identifier
[chardev "qemu_serial-chardev"]
size = "16B"
backend = "ringbuf"

[device "qemu_serial"]
name = "org.linuxcontainers.incus"
bus = "dev-qemu_serial.0"
chardev = "qemu_serial-chardev"
driver = "virtserialport"

[device "qemu_serial_legacy"]
driver = "virtserialport"
name = "org.linuxcontainers.lxd"
bus = "dev-qemu_serial.0"

# Spice agent
[chardev "qemu_spice-chardev"]
backend = "spicevmc"
name = "vdagent"

[device "qemu_spice"]
driver = "virtserialport"
name = "com.redhat.spice.0"
chardev = "qemu_spice-chardev"
bus = "dev-qemu_serial.0"

# Spice folder
[chardev "qemu_spicedir-chardev"]
backend = "spiceport"
name = "org.spice-space.webdav.0"

[device "qemu_spicedir"]
driver = "virtserialport"
name = "org.spice-space.webdav.0"
chardev = "qemu_spicedir-chardev"
bus = "dev-qemu_serial.0"

# USB controller
[device "qemu_usb"]
bus = "qemu_pcie0"
addr = "00.6"
p2 = "8"
p3 = "8"
driver = "qemu-xhci"

[chardev "qemu_spice-usb-chardev1"]
backend = "spicevmc"
name = "usbredir"

[device "qemu_spice-usb1"]
driver = "usb-redir"
chardev = "qemu_spice-usb-chardev1"

[chardev "qemu_spice-usb-chardev2"]
backend = "spicevmc"
name = "usbredir"

[device "qemu_spice-usb2"]
driver = "usb-redir"
chardev = "qemu_spice-usb-chardev2"

[chardev "qemu_spice-usb-chardev3"]
backend = "spicevmc"
name = "usbredir"

[device "qemu_spice-usb3"]
driver = "usb-redir"
chardev = "qemu_spice-usb-chardev3"

[device "qemu_pcie1"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.1"
chassis = "1"

# SCSI controller
[device "qemu_scsi"]
driver = "virtio-scsi-pci"
bus = "qemu_pcie1"
addr = "00.0"

[device "qemu_pcie2"]
chassis = "2"
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.2"

# Shared config drive (9p)
[fsdev "qemu_config"]
security_model = "none"
readonly = "on"
path = "/var/lib/incus/devices/opnsense/config.mount"
fsdriver = "local"

[device "dev-qemu_config-drive-9p"]
driver = "virtio-9p-pci"
bus = "qemu_pcie2"
addr = "00.0"
multifunction = "on"
mount_tag = "config"
fsdev = "qemu_config"

# Shared agent drive (9p)
[fsdev "qemu_agent"]
security_model = "none"
readonly = "on"
path = "/opt/incus/agent/"
fsdriver = "local"

[device "dev-qemu_agent-drive-9p"]
addr = "00.1"
mount_tag = "agent"
fsdev = "qemu_agent"
driver = "virtio-9p-pci"
bus = "qemu_pcie2"

[device "qemu_pcie3"]
chassis = "3"
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.3"

# GPU
[device "qemu_gpu"]
driver = "virtio-vga"
bus = "qemu_pcie3"
addr = "00.0"

[device "qemu_pcie4"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.4"
chassis = "4"

# VM Generation ID
[device "vmgenid0"]
driver = "vmgenid"
guid = "b74f6c4a-1322-4f30-bad5-658383d979e7"

[device "qemu_pcie5"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.5"
chassis = "5"

[device "qemu_pcie6"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.6"
chassis = "6"

[device "qemu_pcie7"]
addr = "1.7"
chassis = "7"
driver = "pcie-root-port"
bus = "pcie.0"

[device "qemu_pcie8"]
multifunction = "on"
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.0"
chassis = "8"

[device "qemu_pcie9"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.1"
chassis = "9"

[device "qemu_pcie10"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.2"
chassis = "10"

[device "qemu_pcie11"]
chassis = "11"
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.3"

[device "qemu_pcie12"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.4"
chassis = "12"

and here from 6.0.4

# Machine
[machine]
graphics = "off"
type = "q35"
accel = "kvm"
usb = "off"

[global]
driver = "ICH9-LPC"
property = "disable_s3"
value = "1"

[global]
driver = "ICH9-LPC"
property = "disable_s4"
value = "0"

[boot-opts]
strict = "on"

# Memory
[memory]
size = "4096M"

# CPU
[smp-opts]
cpus = "1"
maxcpus = "32"

[object "mem0"]
qom-type = "memory-backend-memfd"
size = "4096M"
share = "on"

[numa]
type = "node"
nodeid = "0"
memdev = "mem0"

# Firmware (read only)
[drive]
file = "/opt/incus/share/qemu/OVMF_CODE.4MB.fd"
if = "pflash"
format = "raw"
unit = "0"
readonly = "on"

# Firmware settings (writable)
[drive]
file = "/dev/fd/4"
if = "pflash"
format = "raw"
unit = "1"

# Qemu control
[chardev "monitor"]
backend = "socket"
path = "/run/incus/opnsense/qemu.monitor"
server = "on"
wait = "off"

[mon]
chardev = "monitor"
mode = "control"

# Console
[chardev "console"]
backend = "ringbuf"
size = "1048576"

# VM core info driver
[device "qemu_vmcoreinfo"]
driver = "vmcoreinfo"

[device "qemu_pcie0"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.0"
chassis = "0"
multifunction = "on"

# Balloon driver
[device "qemu_balloon"]
driver = "virtio-balloon-pci"
bus = "qemu_pcie0"
addr = "00.0"
multifunction = "on"

# Random number generator
[object "qemu_rng"]
qom-type = "rng-random"
filename = "/dev/urandom"

[device "dev-qemu_rng"]
driver = "virtio-rng-pci"
bus = "qemu_pcie0"
addr = "00.1"
rng = "qemu_rng"

# Input
[device "qemu_keyboard"]
driver = "virtio-keyboard-pci"
bus = "qemu_pcie0"
addr = "00.2"

# Input
[device "qemu_tablet"]
driver = "virtio-tablet-pci"
bus = "qemu_pcie0"
addr = "00.3"

# Vsock
[device "qemu_vsock"]
driver = "vhost-vsock-pci"
bus = "qemu_pcie0"
addr = "00.4"
guest-cid = "1118946314"
vhostfd = "3"

# Virtual serial bus
[device "dev-qemu_serial"]
driver = "virtio-serial-pci"
bus = "qemu_pcie0"
addr = "00.5"

# Serial identifier
[chardev "qemu_serial-chardev"]
backend = "ringbuf"
size = "16B"

[device "qemu_serial"]
driver = "virtserialport"
name = "org.linuxcontainers.incus"
chardev = "qemu_serial-chardev"
bus = "dev-qemu_serial.0"

[device "qemu_serial_legacy"]
driver = "virtserialport"
name = "org.linuxcontainers.lxd"
bus = "dev-qemu_serial.0"

# Spice agent
[chardev "qemu_spice-chardev"]
backend = "spicevmc"
name = "vdagent"

[device "qemu_spice"]
driver = "virtserialport"
name = "com.redhat.spice.0"
chardev = "qemu_spice-chardev"
bus = "dev-qemu_serial.0"

# Spice folder
[chardev "qemu_spicedir-chardev"]
backend = "spiceport"
name = "org.spice-space.webdav.0"

[device "qemu_spicedir"]
driver = "virtserialport"
name = "org.spice-space.webdav.0"
chardev = "qemu_spicedir-chardev"
bus = "dev-qemu_serial.0"

# USB controller
[device "qemu_usb"]
driver = "qemu-xhci"
bus = "qemu_pcie0"
addr = "00.6"
p2 = "8"
p3 = "8"

[chardev "qemu_spice-usb-chardev1"]
backend = "spicevmc"
name = "usbredir"

[device "qemu_spice-usb1"]
driver = "usb-redir"
chardev = "qemu_spice-usb-chardev1"

[chardev "qemu_spice-usb-chardev2"]
backend = "spicevmc"
name = "usbredir"

[device "qemu_spice-usb2"]
driver = "usb-redir"
chardev = "qemu_spice-usb-chardev2"

[chardev "qemu_spice-usb-chardev3"]
backend = "spicevmc"
name = "usbredir"

[device "qemu_spice-usb3"]
driver = "usb-redir"
chardev = "qemu_spice-usb-chardev3"

[device "qemu_pcie1"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.1"
chassis = "1"

# SCSI controller
[device "qemu_scsi"]
driver = "virtio-scsi-pci"
bus = "qemu_pcie1"
addr = "00.0"

[device "qemu_pcie2"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.2"
chassis = "2"

# Shared config drive (9p)
[fsdev "qemu_config"]
fsdriver = "local"
security_model = "none"
readonly = "on"
path = "/var/lib/incus/devices/opnsense/config.mount"

[device "dev-qemu_config-drive-9p"]
driver = "virtio-9p-pci"
bus = "qemu_pcie2"
addr = "00.0"
multifunction = "on"
mount_tag = "config"
fsdev = "qemu_config"

# Shared agent drive (9p)
[fsdev "qemu_agent"]
fsdriver = "local"
security_model = "none"
readonly = "on"
path = "/opt/incus/agent/"

[device "dev-qemu_agent-drive-9p"]
driver = "virtio-9p-pci"
bus = "qemu_pcie2"
addr = "00.1"
mount_tag = "agent"
fsdev = "qemu_agent"

[device "qemu_pcie3"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.3"
chassis = "3"

# GPU
[device "qemu_gpu"]
driver = "virtio-vga"
bus = "qemu_pcie3"
addr = "00.0"

[device "qemu_pcie4"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.4"
chassis = "4"

# VM Generation ID
[device "vmgenid0"]
driver = "vmgenid"
guid = "cf713c67-9bca-4324-90c1-2a6104872098"

[device "qemu_pcie5"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.5"
chassis = "5"

[device "qemu_pcie6"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.6"
chassis = "6"

[device "qemu_pcie7"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "1.7"
chassis = "7"

[device "qemu_pcie8"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.0"
chassis = "8"
multifunction = "on"

[device "qemu_pcie9"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.1"
chassis = "9"

[device "qemu_pcie10"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.2"
chassis = "10"

[device "qemu_pcie11"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.3"
chassis = "11"

[device "qemu_pcie12"]
driver = "pcie-root-port"
bus = "pcie.0"
addr = "2.4"
chassis = "12"

Can you try setting raw.qemu.conf to

[memory]
maxmem = "65536M`

I wonder if it’s the 1TB max hotplug memory which is tripped FreeBSD somehow.

Thanks for you fast reply. Adding a file /run/incus/NAMEOFVM/raw.qemu.conf with the content

[memory]
maxmem = "65536M"

and then stopping and starting the VM again does not help. I also aligned the values with “4096M” and tried replacing the whole raw.qemu.conf with the content of qemu.conf from the Incus 6.0.4 install.

No success :frowning:

This approach will fail by design as Incus rewrites the file on every start of the instance. You need to edit your instance configuration (incus config edit <instance-name>) and add the value there. You might need to add raw.qemu.conf as it might not exists.

You are right, Instance options - Incus documentation describes it very clearly.

running incus config edit VMNAME and adding the following

config:
(...)
  raw.qemu.conf: |-
    [memory]
    maxmem = "65536M"
(...)

solves the problem :white_check_mark:

FreeBSD VMs now booting up perfectly fine with > 2 GB RAM on Incus 6.14.

Thank you for your fast support!

Given some of the weirdness we’ve had with calculating those memory amounts, there’s a good chance I’ll be introducing a limits.memory.hotplug to control the amount of hot-pluggable memory so we can tweak that without having to use raw.qemu.conf.
