Incus cluster, a volume exists on 2 nodes

Incus
, ,
1

Hi,

Last Sunday, the Linstor pool managed by Incus crashed after a sudden disk pool saturation.
To restore the services, we deleted all the volume’s snapshots.

While we were cleaning all the mess, we saw that one volume existed on 2 satellites.

This was preventing snapshots to be generated by Incus for this volume, so I removed it after a node reboot.

But the volume is actually in a bad state inside linstor, and I don’t know what to do to recover a great status.

I tried many things, and now, this is the situation :

root@node4:/# linstor resource-definition list-properties incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5
╭────────────────────────────────────────────────────────────────────────────────────────╮
┊ Key                                    ┊ Value                                         ┊
╞════════════════════════════════════════════════════════════════════════════════════════╡
┊ Aux/Incus/content-type                 ┊ filesystem                                    ┊
┊ Aux/Incus/name                         ┊ incus-volume-webserver-otypo-prod             ┊
┊ Aux/Incus/snapshot-name/test-otypo-0   ┊ incus-volume-8c0d39a8059b4547881a7824930e7295 ┊
┊ Aux/Incus/type                         ┊ containers                                    ┊
┊ DrbdOptions/Net/allow-two-primaries    ┊ yes                                           ┊
┊ DrbdOptions/Net/ping-timeout           ┊ 10                                            ┊
┊ DrbdOptions/Resource/quorum            ┊ majority                                      ┊
┊ DrbdOptions/auto-add-quorum-tiebreaker ┊ true                                          ┊
┊ DrbdOptions/auto-verify-alg            ┊ sha256                                        ┊
┊ DrbdPrimarySetOn                       ┊ NODE4                                         ┊
┊ Internal/Drbd/QuorumSetBy              ┊ user                                          ┊
┊ cloned-from                            ┊ incus-volume-d4926874a385431f9657b894c43b91c2 ┊
╰────────────────────────────────────────────────────────────────────────────────────────╯

root@node4:/# drbdadm status incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5 --verbose --statistics
drbdsetup status incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5 --verbose --statistics
incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5 node-id:0 role:Secondary suspended:no force-io-failures:no
    write-ordering:flush
  volume:0 minor:1031 disk:Inconsistent backing_dev:/dev/zvol/nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000 quorum:yes open:no
      size:244140628 read:758107489 written:1811295512 al-writes:288109 bm-writes:112402 upper-pending:0 lower-pending:0 al-suspended:no blocked:no
  node5.nakweb.agency node-id:2 connection:Connected role:Primary tls:no congested:no ap-in-flight:0 rs-in-flight:0
    volume:0 replication:SyncTarget peer-disk:UpToDate done:100.00 resync-suspended:no
        received:85377336 sent:0 out-of-sync:172 pending:0 unacked:0 dbdt1:0.00 eta:nan
  node6.nakweb.agency node-id:1 connection:StandAlone role:Unknown tls:no congested:no ap-in-flight:0 rs-in-flight:0
    volume:0 replication:Off peer-disk:DUnknown resync-suspended:dependency
        received:0 sent:0 out-of-sync:0 pending:0 unacked:0

The “out-of-sync:172” is running for about 24 hours now. The `received:` value is growing, slowly.

Also, the ext4 fs on this volume has been repaired with fsck, and many things were corrected or deleted.

And, of cource, a very critical apps is running on the instance associated to the volume.

Is there anything that can do related with Incus ? Or it is better to ask Linbit forum ?

2

Isn’t that supposed to be the case of all your volumes, as per your place count policy? Or do you mean mounted (“available” in LINSTOR’s vocabulary) on two satellites?

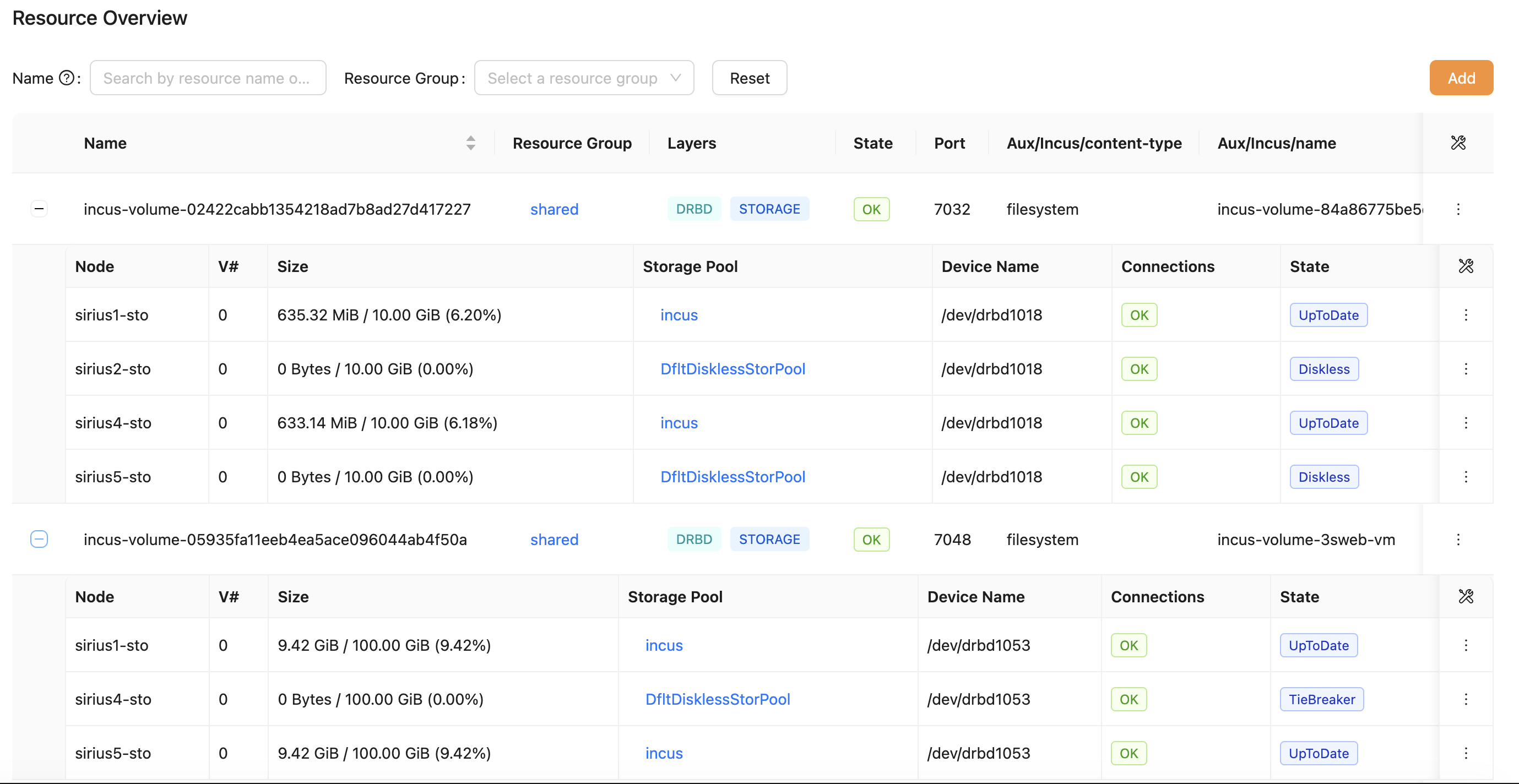

image2758×1424 432 KB

How so? Which messages did you get?

What did you do to remove it?

3
root@node4:/# linstor v l --resources incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5
╭────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
┊ Resource                                      ┊ Node  ┊ StoragePool          ┊ VolNr ┊ MinorNr ┊ DeviceName    ┊ Allocated ┊ InUse  ┊               State ┊ Repl                       ┊
╞════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╡
┊ incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5 ┊ node4 ┊ nvme_pool            ┊     0 ┊    1031 ┊ /dev/drbd1031 ┊ 59.34 GiB ┊ Unused ┊ SyncTarget(100.00%) ┊ node5: SyncTarget(100.00%) ┊
╞┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄╡
┊ incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5 ┊ node5 ┊ nvme_pool            ┊     0 ┊    1031 ┊ /dev/drbd1031 ┊ 59.34 GiB ┊ InUse  ┊            UpToDate ┊ node4: SyncSource          ┊
┊                                               ┊       ┊                      ┊       ┊         ┊               ┊           ┊        ┊                     ┊ node6: Established         ┊
╞┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄╡
┊ incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5 ┊ node6 ┊ DfltDisklessStorPool ┊     0 ┊    1031 ┊ /dev/drbd1031 ┊           ┊ Unused ┊          TieBreaker ┊ Established(1)             ┊
╰────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯

This is the state now ^

The error message while automatic snapshoting was :

time="2025-12-16T00:59:20+01:00" level=error msg="Error creating snapshot" err="Create instance snapshot: Could not create resource snapshot: Message: 'New snapshot 'incus-volume-d1707ad91dfe477abee8993730e9b98b' of resource 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' registered.'; Details: 'Snapshot 'incus-volume-d1707ad91dfe477abee8993730e9b98b' of resource 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' UUID is: 09d084d8-43be-4a0e-bc85-88b696b8aa3b' next error: Message: '(node4) Resource 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' [DRBD] adjusted.' next error: Message: 'Suspended IO of '[incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5]' on 'node4' for snapshot' next error: Message: '(node5) Resource 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' [DRBD] adjusted.' next error: Message: 'Suspended IO of '[incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5]' on 'node5' for snapshot' next error: Message: '(node6) Failed to delete zfs volume'; Details: 'Command 'zfs destroy nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000' returned with exitcode 1. \n\nStandard out: \n\n\nError message: \ncannot destroy 'nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000': dataset is busy\n\n'; Reports: '[693F56FA-C4E60-000007]' next error: Message: '(node4) Resource 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' [DRBD] adjusted.' next error: Message: 'Aborted snapshot and resumed IO of 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' on 'node4'' next error: Message: '(node5) Resource 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' [DRBD] adjusted.' next error: Message: 'Aborted snapshot and resumed IO of 'incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5' on 'node5'' next error: Message: '(node6) Failed to delete zfs volume'; Details: 'Command 'zfs destroy nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000' returned with exitcode 1. \n\nStandard out: \n\n\nError message: \ncannot destroy 'nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000': dataset is busy\n\n'; Reports: '[693F56FA-C4E60-000008]'" instance=webserver-otypo-prod project=default snapshot=snap0

To remove incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000 from node6, I did :

root@node6:/# linstor resource delete node6 incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5

root@node6:/# zfs destroy -f nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000
cannot destroy 'nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000': dataset is busy

root@node6:/# wipefs -a /dev/zd496
wipefs: error: /dev/zd496: probing initialization failed: Device or resource busy

root@node6:/# zfs destroy -f nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000
cannot destroy 'nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000': dataset is busy

root@node6:/# rm /sys/block/zd496/holders/drbd1031
rm: cannot remove '/sys/block/zd496/holders/drbd1031': Operation not permitted

And then, rebooted. The zvol was removed automatically, but there was this :

root@node6:/# drbdadm status incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5
incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5 role:Secondary
  disk:Diskless open:no
  node4.nakweb.agency connection:StandAlone
  node5.nakweb.agency role:Primary
    peer-disk:UpToDate

So, I did :

root@node6:/# drbdadm secondary incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5

root@node6:/# drbdadm disconnect incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5

root@node6:/# drbdadm connect --discard-my-data incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5

And now, I’m here :melting_face:

4

Looks fine to me.

The important part is

Message: '(node6) Failed to delete zfs volume'; Details: 'Command 'zfs destroy nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000' returned with exitcode 1. \n\nStandard out: \n\n\nError message: \ncannot destroy 'nvme_pool/incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5_00000': dataset is busy\n\n'; Reports: '[693F56FA-C4E60-000007]'

So the real error is that the dataset was busy, not necessarily a LINSTOR thing, but the investigation should have started here.

Not sure what this intended to solve, but it’s generally a bad idea to manually tinker with Incus-managed LINSTOR resources

There, same error as what LINSTOR reported when trying to snapshot.

That looks fine to me, what’s the problem?

Again, what are you intending to solve / do with that?

5

Looks fine to me.

If I compare with another volume, this is not looking fine, at least because it shows "SyncTarget(100,00%)”. To compare with a clean one :

root@node4:/# linstor v l --resources incus-volume-c88dcd8ac6fb415fb5f5ebabd9d8722f
╭────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
┊ Resource                                      ┊ Node  ┊ StoragePool          ┊ VolNr ┊ MinorNr ┊ DeviceName    ┊  Allocated ┊ InUse  ┊      State ┊ Repl           ┊
╞════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╡
┊ incus-volume-c88dcd8ac6fb415fb5f5ebabd9d8722f ┊ node4 ┊ nvme_pool            ┊     0 ┊    1001 ┊ /dev/drbd1001 ┊ 204.35 GiB ┊ Unused ┊   UpToDate ┊ Established(2) ┊
┊ incus-volume-c88dcd8ac6fb415fb5f5ebabd9d8722f ┊ node5 ┊ nvme_pool            ┊     0 ┊    1001 ┊ /dev/drbd1001 ┊ 204.35 GiB ┊ InUse  ┊   UpToDate ┊ Established(2) ┊
┊ incus-volume-c88dcd8ac6fb415fb5f5ebabd9d8722f ┊ node6 ┊ DfltDisklessStorPool ┊     0 ┊    1001 ┊ /dev/drbd1001 ┊            ┊ Unused ┊ TieBreaker ┊ Established(2) ┊
╰────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯

So the real error is that the dataset was busy, not necessarily a LINSTOR thing, but the investigation should have started here

Yes, I did some research, asked an AI, and “we” concluded that it was a bug, because nor drdbd, nor zfs nor linstor was doing anything on the volume. As i remember, even `lsof` was not showing anything.

That looks fine to me, what’s the problem?

The problem is the StandAlone state, that I couldn’t on others clean volumes :

root@node5:/# drbdadm status incus-volume-c88dcd8ac6fb415fb5f5ebabd9d8722f
incus-volume-c88dcd8ac6fb415fb5f5ebabd9d8722f role:Primary
  disk:UpToDate open:yes
  node4 role:Secondary
    peer-disk:UpToDate
  node6 role:Secondary
    peer-disk:Diskless

Again, what are you intending to solve / do with that?

I wanted to “change” the StandAlone state of node4, to a clean Secondary state.

6

So, my colleague just revive the thing up with :

on node6 :

drbdadm disconnect incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5
drbdadm connect incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5

on node4 :

drbdadb disconnect incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5
drbdadm down incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5
drbdadm up incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5
drbdadb connect incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5

Thank you @bensmrs for your time.

7

You’ll probably want to cut and restart the sync between node4 and node5.
On node4, you can run:

drbdadm disconnect incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5:node5
drbdadm connect incus-volume-912ccf5d8a6d4868bc3c2885a958c4f5:node5

That should reset and restart the sync.

8

So, all good with that?

9

Yes, everything is right, thank you again :slight_smile:
