Hi there,
I’m trying to install IncusOS on a Seeed Studio ODYSSEY X86J4105 (which is similar to but superseded by this) which has an onboard 64GB eMMC (SanDisk DA4064). The installer, however, is unable to find the drive. Is this likely a matter of the installer not having the necessary driver? If so, is there any way I can add support to the installer?
Thanks a ton for Incus and IncusOS! It’s my dream distro.
Hmm, it could be either.
It would be useful to know what driver it’s using on a regular Linux distribution and what the entries look like under /dev/disk/
edit: sorry for the double post. :\
Surely. Drive currently has an ubuntu installation on it.
Here’s are the relevant entries by-id (with SN swapped out with nonsense):
$ ll /dev/disk/by-id/
total 0
drwxr-xr-x 2 root root 600 Jan 4 19:49 ./
drwxr-xr-x 8 root root 160 Jan 4 19:48 ../
lrwxrwxrwx 1 root root 13 Jan 4 19:49 mmc-DA4064_0xffdeadbe -> ../../mmcblk0
lrwxrwxrwx 1 root root 15 Jan 4 19:49 mmc-DA4064_0xffdeadbe-part1 -> ../../mmcblk0p1
lrwxrwxrwx 1 root root 15 Jan 4 19:49 mmc-DA4064_0xffdeadbe-part2 -> ../../mmcblk0p2
Here are the mmc0 related logs from dmesg:
$ dmesg | grep mmc0
[ 2.344946] mmc0: CQHCI version 5.10
[ 2.346705] mmc0: SDHCI controller on PCI [0000:00:1c.0] using ADMA 64-bit
[ 2.476956] mmc0: Command Queue Engine enabled
[ 2.478506] mmc0: new HS400 MMC card at address 0001
[ 2.486822] mmcblk0: mmc0:0001 DA4064 58.2 GiB
[ 2.488311] mmcblk0boot0: mmc0:0001 DA4064 partition 1 4.00 MiB
[ 2.489757] mmcblk0boot1: mmc0:0001 DA4064 partition 2 4.00 MiB
[ 2.492220] mmcblk0rpmb: mmc0:0001 DA4064 partition 3 16.0 MiB, chardev (239:0)
$ lsmod
Module Size Used by
xt_conntrack 16384 1
xt_multiport 20480 1
xt_nat 16384 1
xt_tcpudp 20480 3
xt_addrtype 16384 2
xt_mark 16384 2
xt_MASQUERADE 20480 2
nft_counter 16384 16
xt_comment 16384 8
nft_compat 20480 20
cfg80211 712704 0
macvlan 24576 0
veth 28672 0
nf_tables_set 32768 2
nft_masq 16384 2
nft_chain_nat 16384 4
bridge 176128 0
stp 16384 1 bridge
llc 16384 2 bridge,stp
btrfs 1269760 2
xor 24576 1 btrfs
zstd_compress 167936 1 btrfs
raid6_pq 114688 1 btrfs
zfs 4038656 3
zunicode 331776 1 zfs
zlua 147456 1 zfs
zavl 16384 1 zfs
icp 303104 1 zfs
zcommon 90112 2 zfs,icp
znvpair 81920 2 zfs,zcommon
spl 126976 5 zfs,icp,znvpair,zcommon,zavl
ebtable_filter 16384 0
ebtables 36864 1 ebtable_filter
ip6table_raw 16384 0
ip6table_mangle 16384 0
ip6table_nat 16384 0
ip6table_filter 16384 0
ip6_tables 32768 4 ip6table_filter,ip6table_raw,ip6table_nat,ip6table_mangle
iptable_raw 16384 0
iptable_mangle 16384 0
iptable_nat 16384 0
nf_nat 45056 6 ip6table_nat,xt_nat,nft_masq,nft_chain_nat,iptable_nat,xt_MASQUERADE
nf_conntrack 139264 5 xt_conntrack,nf_nat,xt_nat,nft_masq,xt_MASQUERADE
nf_defrag_ipv6 24576 1 nf_conntrack
nf_defrag_ipv4 16384 1 nf_conntrack
libcrc32c 16384 3 nf_conntrack,nf_nat,btrfs
iptable_filter 16384 0
bpfilter 32768 0
nf_tables 151552 198 nft_compat,nft_counter,nft_masq,nft_chain_nat,nf_tables_set
nfnetlink 16384 2 nft_compat,nf_tables
vhost_vsock 24576 1
vmw_vsock_virtio_transport_common 36864 1 vhost_vsock
vhost 49152 1 vhost_vsock
vsock 40960 3 vmw_vsock_virtio_transport_common,vhost_vsock
spi_pxa2xx_platform 28672 0
dw_dmac 16384 0
dw_dmac_core 28672 1 dw_dmac
rtsx_usb_ms 24576 0
8250_dw 16384 0
memstick 20480 1 rtsx_usb_ms
rtsx_usb_sdmmc 32768 0
mei_hdcp 24576 0
intel_rapl_msr 20480 0
snd_hda_codec_hdmi 61440 1
snd_hda_codec_realtek 143360 1
snd_hda_codec_generic 81920 1 snd_hda_codec_realtek
intel_telemetry_pltdrv 20480 0
snd_sof_pci 20480 0
intel_punit_ipc 16384 1 intel_telemetry_pltdrv
intel_telemetry_core 16384 1 intel_telemetry_pltdrv
snd_sof_intel_hda_common 73728 1 snd_sof_pci
intel_pmc_ipc 20480 1 intel_telemetry_pltdrv
snd_soc_hdac_hda 24576 1 snd_sof_intel_hda_common
snd_sof_intel_hda 20480 1 snd_sof_intel_hda_common
x86_pkg_temp_thermal 20480 0
snd_sof_intel_byt 20480 1 snd_sof_pci
snd_sof_intel_ipc 20480 1 snd_sof_intel_byt
intel_powerclamp 20480 0
coretemp 20480 0
kvm_intel 286720 0
kvm 667648 1 kvm_intel
snd_sof 106496 4 snd_sof_pci,snd_sof_intel_hda_common,snd_sof_intel_byt,snd_sof_intel_ipc
snd_sof_xtensa_dsp 16384 1 snd_sof_pci
snd_hda_ext_core 28672 3 snd_sof_intel_hda_common,snd_soc_hdac_hda,snd_sof_intel_hda
snd_soc_acpi_intel_match 32768 2 snd_sof_pci,snd_sof_intel_hda_common
snd_soc_acpi 16384 2 snd_sof_pci,snd_soc_acpi_intel_match
ledtrig_audio 16384 3 snd_hda_codec_generic,snd_hda_codec_realtek,snd_sof
i915 2002944 2
crct10dif_pclmul 16384 1
snd_soc_core 249856 3 snd_sof,snd_sof_intel_hda_common,snd_soc_hdac_hda
crc32_pclmul 16384 0
ghash_clmulni_intel 16384 0
snd_compress 24576 1 snd_soc_core
ac97_bus 16384 1 snd_soc_core
rapl 20480 0
snd_pcm_dmaengine 16384 1 snd_soc_core
intel_cstate 20480 0
wdat_wdt 20480 0
snd_hda_intel 53248 0
snd_intel_dspcfg 28672 3 snd_hda_intel,snd_sof_pci,snd_sof_intel_hda_common
snd_hda_codec 139264 5 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec_realtek,snd_soc_hdac_hda
snd_hda_core 90112 9 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_ext_core,snd_hda_codec,snd_hda_codec_realtek,snd_sof_intel_hda_common,snd_soc_hdac_hda,snd_sof_intel_hda
serio_raw 20480 0
joydev 24576 0
snd_hwdep 20480 1 snd_hda_codec
snd_pcm 110592 8 snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_sof,snd_sof_intel_hda_common,snd_soc_core,snd_hda_core,snd_pcm_dmaengine
igb 221184 0
input_leds 16384 0
cp210x 40960 1
drm_kms_helper 184320 1 i915
snd_timer 40960 1 snd_pcm
usbserial 53248 3 cp210x
rtsx_usb 28672 2 rtsx_usb_sdmmc,rtsx_usb_ms
dca 16384 1 igb
snd 90112 10 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hwdep,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek,snd_timer,snd_compress,snd_soc_core,snd_pcm
uas 28672 0
i2c_algo_bit 16384 2 igb,i915
i2c_i801 32768 0
lpc_ich 24576 0
intel_lpss_pci 20480 2
intel_lpss 16384 1 intel_lpss_pci
idma64 20480 0
fb_sys_fops 16384 1 drm_kms_helper
soundcore 16384 1 snd
virt_dma 20480 1 idma64
processor_thermal_device 24576 0
mei_me 40960 1
syscopyarea 16384 1 drm_kms_helper
intel_rapl_common 24576 2 intel_rapl_msr,processor_thermal_device
sysfillrect 16384 1 drm_kms_helper
mei 106496 3 mei_hdcp,mei_me
sysimgblt 16384 1 drm_kms_helper
int340x_thermal_zone 16384 1 processor_thermal_device
intel_soc_dts_iosf 20480 1 processor_thermal_device
i2c_hid 28672 0
mac_hid 16384 0
int3400_thermal 20480 0
acpi_thermal_rel 16384 1 int3400_thermal
video 57344 1 i915
pinctrl_geminilake 24576 0
pinctrl_intel 28672 1 pinctrl_geminilake
dptf_power 16384 0
binfmt_misc 24576 1
sch_fq_codel 20480 3
drm 495616 3 drm_kms_helper,i915
ramoops 28672 0
reed_solomon 24576 1 ramoops
efi_pstore 16384 0
ip_tables 32768 4 iptable_filter,iptable_raw,iptable_nat,iptable_mangle
x_tables 40960 18 ebtables,ip6table_filter,xt_conntrack,ip6table_raw,iptable_filter,nft_compat,xt_multiport,xt_tcpudp,xt_addrtype,xt_nat,xt_comment,ip6_tables,iptable_raw,ip_tables,ip6table_mangle,xt_MASQUERADE,iptable_mangle,xt_mark
ses 20480 0
enclosure 16384 1 ses
mpt3sas 278528 0
raid_class 16384 1 mpt3sas
mptspi 24576 0
scsi_transport_spi 32768 1 mptspi
mptscsih 40960 1 mptspi
mptbase 94208 2 mptspi,mptscsih
megaraid_sas 163840 0
scsi_transport_sas 36864 2 ses,mpt3sas
virtio_blk 20480 0
virtio_scsi 24576 0
genet 57344 0
mdio_bcm_unimac 20480 0
gpio_regulator 16384 0
fixed 20480 0
phy_generic 20480 0
sha256_ssse3 32768 0
echainiv 16384 0
aesni_intel 372736 0
glue_helper 16384 1 aesni_intel
crypto_simd 16384 1 aesni_intel
cryptd 24576 2 crypto_simd,ghash_clmulni_intel
dm_crypt 40960 0
algif_skcipher 16384 0
af_alg 24576 1 algif_skcipher
mmc_block 49152 0
sdhci_acpi 24576 0
sdhci_pci 53248 0
cqhci 28672 1 sdhci_pci
sdhci 65536 2 sdhci_acpi,sdhci_pci
nls_iso8859_1 16384 1
ahci 40960 0
libahci 36864 1 ahci
hid_generic 16384 0
usbhid 57344 0
hid 131072 3 i2c_hid,usbhid,hid_generic
usb_storage 77824 1 uas
nvme 49152 4
nvme_core 94208 6 nvme
autofs4 45056 2
Anything else that would be helpful?
Okay, so we’ll definitely need to add sdhci_pci to the initrd to allow for boot post-install.
@gibmat can you think of any reason why the install logic wouldn’t allow installing on this?
base: Add sdhci_pci by stgraber · Pull Request #760 · lxc/incus-os · GitHub will add what we need for post-install boot handling
At a minimum we’ll need to update this logic to also recognize mmcblk devices: incus-os/incus-osd/internal/install/install.go at main · lxc/incus-os · GitHub
If we can emulate an eMMC device in QEMU it should be pretty easy to work though any other issues.
(I’m also happy to be a guinea pig and try pre-releases if helpful.)
stgraber@castiana:~$ incus config show dev-os | grep sdc
raw.apparmor: /tmp/sdcard.img rwk,
raw.qemu: -device sdhci-pci -device sd-card,drive=sdcard,spec_version=3 -drive id=sdcard,file=/tmp/sdcard.img,if=none,format=raw
stgraber@castiana:~$ truncate -s 64GiB /tmp/sdcard.img
stgraber@castiana:~$ incus start dev-os
stgraber@castiana:~$ incus exec dev-os bash
bash-5.2# lsblk | grep mmc
mmcblk0 179:0 0 64G 0 disk
bash-5.2#
Hopefully that’s close enough to real hardware to be useful for installation testing.
Once this lands in a published IncusOS image, hopefully this should get you going on your system.

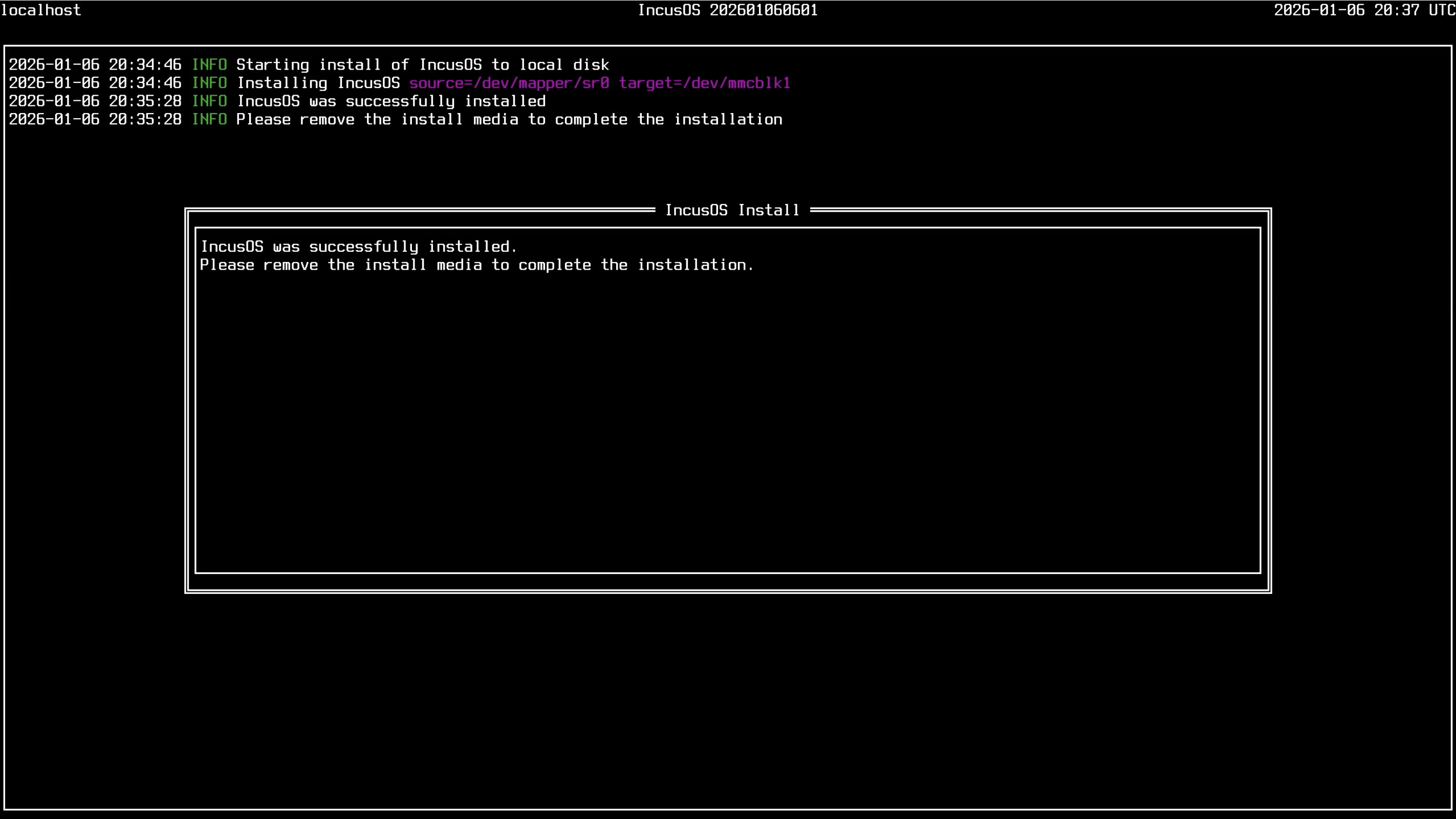

Made progress with the testing channel but now getting stuck during the copying phase. Partition 2 of 5 completes and then I get the following error. The existing disk has (had?) two partitions and I believe I’d selected the option to wipe the target disk but I’ll create another image just in case.
On second look, not sure why it’s targeting mmcblk1
Disk /dev/mmcblk0: 58.25 GiB, 62537072640 bytes, 122142720 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: DEADBEEF-DEAD-BEEF-DEAD-BEEFDEADBEEF
Device Start End Sectors Size Type
/dev/mmcblk0p1 2048 4196351 4194304 2G EFI System
/dev/mmcblk0p2 4196352 4401151 204800 100M Linux filesystem
/dev/mmcblk0p3 4401152 4401183 32 16K unknown
/dev/mmcblk0p4 4403200 4607999 204800 100M unknown
/dev/mmcblk0p5 4608000 6705151 2097152 1G unknown
/dev/mmcblk0p6 6705152 6705183 32 16K unknown
/dev/mmcblk0p7 6707200 6911999 204800 100M unknown
/dev/mmcblk0p8 6912000 9009151 2097152 1G unknown
$ lsblk -I 179 -iJnpb
{
"blockdevices": [
{"name":"/dev/mmcblk0", "maj:min":"179:0", "rm":false, "size":62537072640, "ro":false, "type":"disk", "mountpoint":null,
"children": [
{"name":"/dev/mmcblk0p1", "maj:min":"179:1", "rm":false, "size":2147483648, "ro":false, "type":"part", "mountpoint":null},
{"name":"/dev/mmcblk0p2", "maj:min":"179:2", "rm":false, "size":104857600, "ro":false, "type":"part", "mountpoint":null},
{"name":"/dev/mmcblk0p3", "maj:min":"179:3", "rm":false, "size":16384, "ro":false, "type":"part", "mountpoint":null},
{"name":"/dev/mmcblk0p4", "maj:min":"179:4", "rm":false, "size":104857600, "ro":false, "type":"part", "mountpoint":null},
{"name":"/dev/mmcblk0p5", "maj:min":"179:5", "rm":false, "size":1073741824, "ro":false, "type":"part", "mountpoint":null},
{"name":"/dev/mmcblk0p6", "maj:min":"179:6", "rm":false, "size":16384, "ro":false, "type":"part", "mountpoint":null},
{"name":"/dev/mmcblk0p7", "maj:min":"179:7", "rm":false, "size":104857600, "ro":false, "type":"part", "mountpoint":null},
{"name":"/dev/mmcblk0p8", "maj:min":"259:6", "rm":false, "size":1073741824, "ro":false, "type":"part", "mountpoint":null}
]
},
{"name":"/dev/mmcblk0boot0", "maj:min":"179:8", "rm":false, "size":4194304, "ro":true, "type":"disk", "mountpoint":null},
{"name":"/dev/mmcblk0boot1", "maj:min":"179:16", "rm":false, "size":4194304, "ro":true, "type":"disk", "mountpoint":null}
]
}
Huh. Tried it a second time without changing anything just for fun. Seemed to work. ¯\_(ツ)_/¯
Interesting, I wonder what got it to try mmcblk1 the first time around…
I can’t power cycle the machine remotely at the moment so I’m stuck until I can get to it but I’ll see if I can reproduce it later.
That’s odd, I wonder what’s causing the numbering of the mmcblk device to change…. under the hood we rely on the KName field returned by running lsblk to get the list of possible install target devices. I’d expect device naming to be stable from one boot to another.
Have you defined any install target in the seed configuration?
Post-install, does IncusOS start up properly on the system?
So the machine installed itself again after reboot?
The message at the top shows it booting from a CD-ROM drive (/dev/mapper/sr0), was the install media correctly disconnected before reboot?
Sorry, stepped away for a few hours.
Yep, pointed at the eMMC in the seed config.

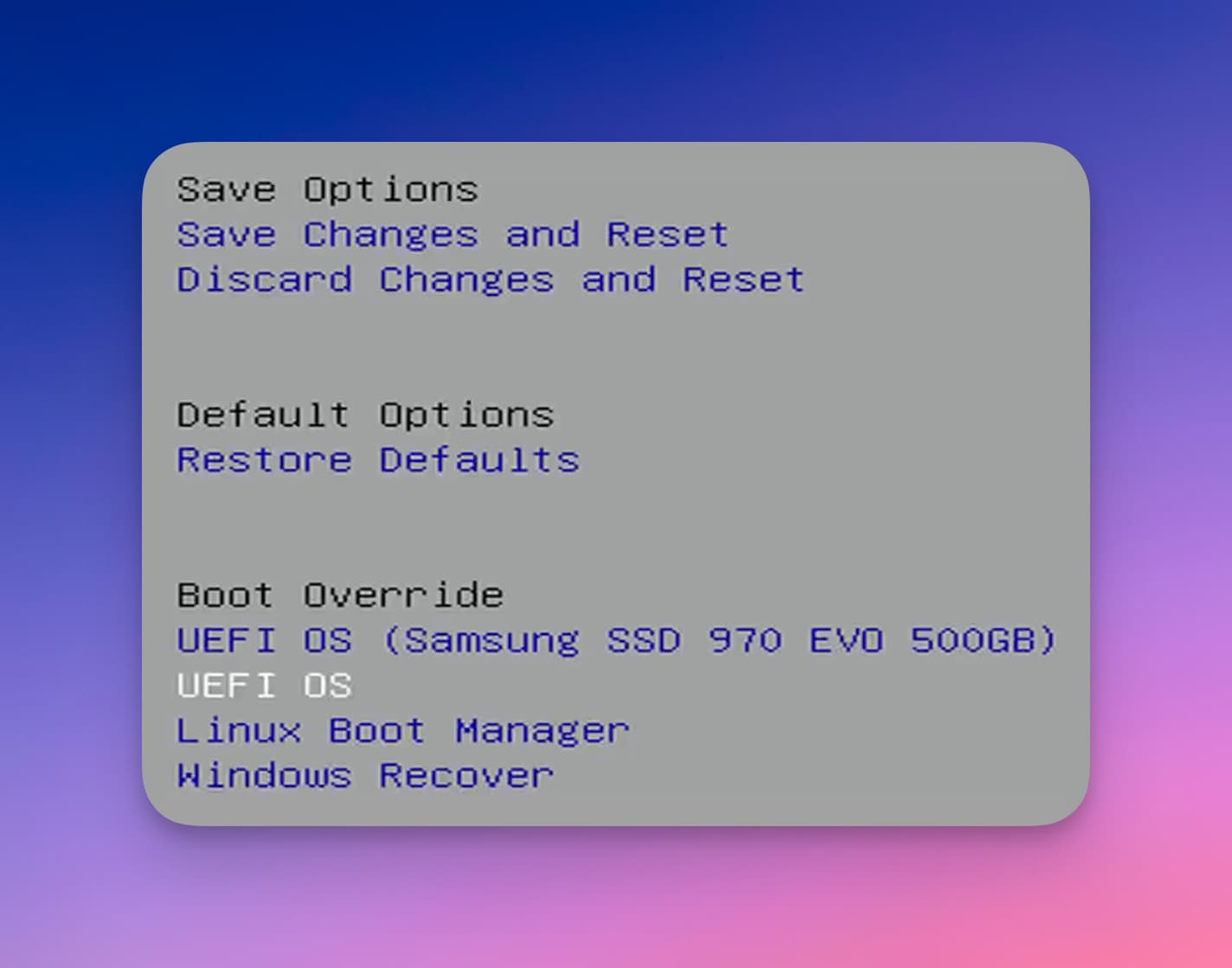

Trying it now but does not appear to. I have two new boot options for UEFI OS and Linux Boot Manager (the other UEFI boot device is a separate drive that has Ubuntu Core on it):

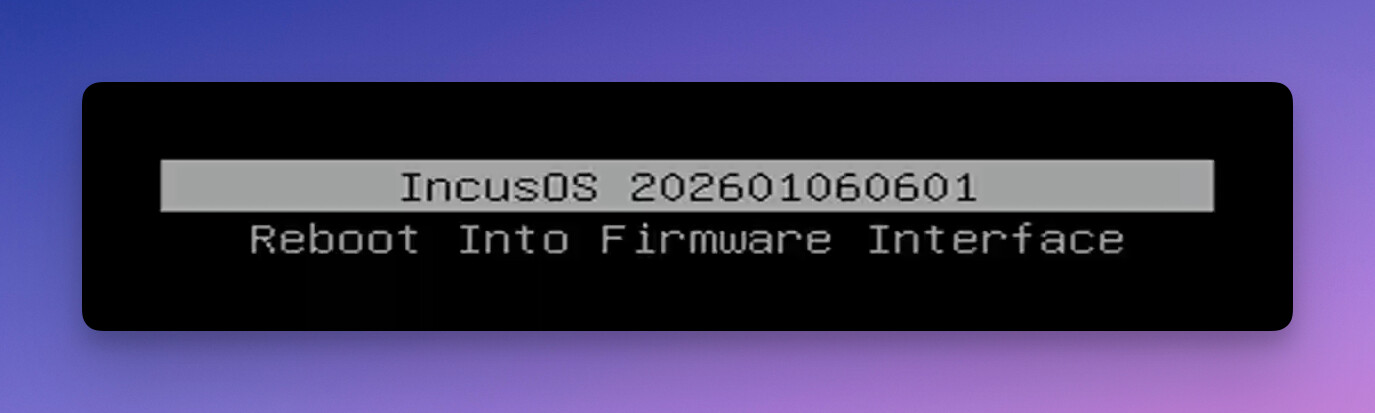

Selecting either of those entries results in the boot selection screen:
From there, screen goes blank and no network activity. I don’t have physical access to the machine at the moment but I can reboot it at that point with CTRL+ALT+DEL so it doesn’t seem totally hung.
Yeah, sorry—I didn’t make that clear. I’d left the (virtual—from KVM) CD-ROM attached, so that was totally expected, just pointing out that it was back to mmcblk1 and, strangely, it seemed to complete the install on that device.
Same result with a real USB plugged in. Here is a (long and boring at ~10m
) screen recording of me performing the install 4 times without touching anything other than bios boot selection screen. 1st, 2nd, and 4th show as mmcblk0, 3rd as mmcblk1 (there are video artifacts on the 4th install, that’s just the video capture acting up so ignore).
This USB-based install resulted in the same—I can see the version selection menu and then black screen, no additional activity.
I’ll try again tomorrow once I’ve removed the other SSD in case that’s causing some sort of issue.
