Greeting,
How to routing inside incusbr0, specially demo-ha line contaiers from outside d1 or BGP Peer?

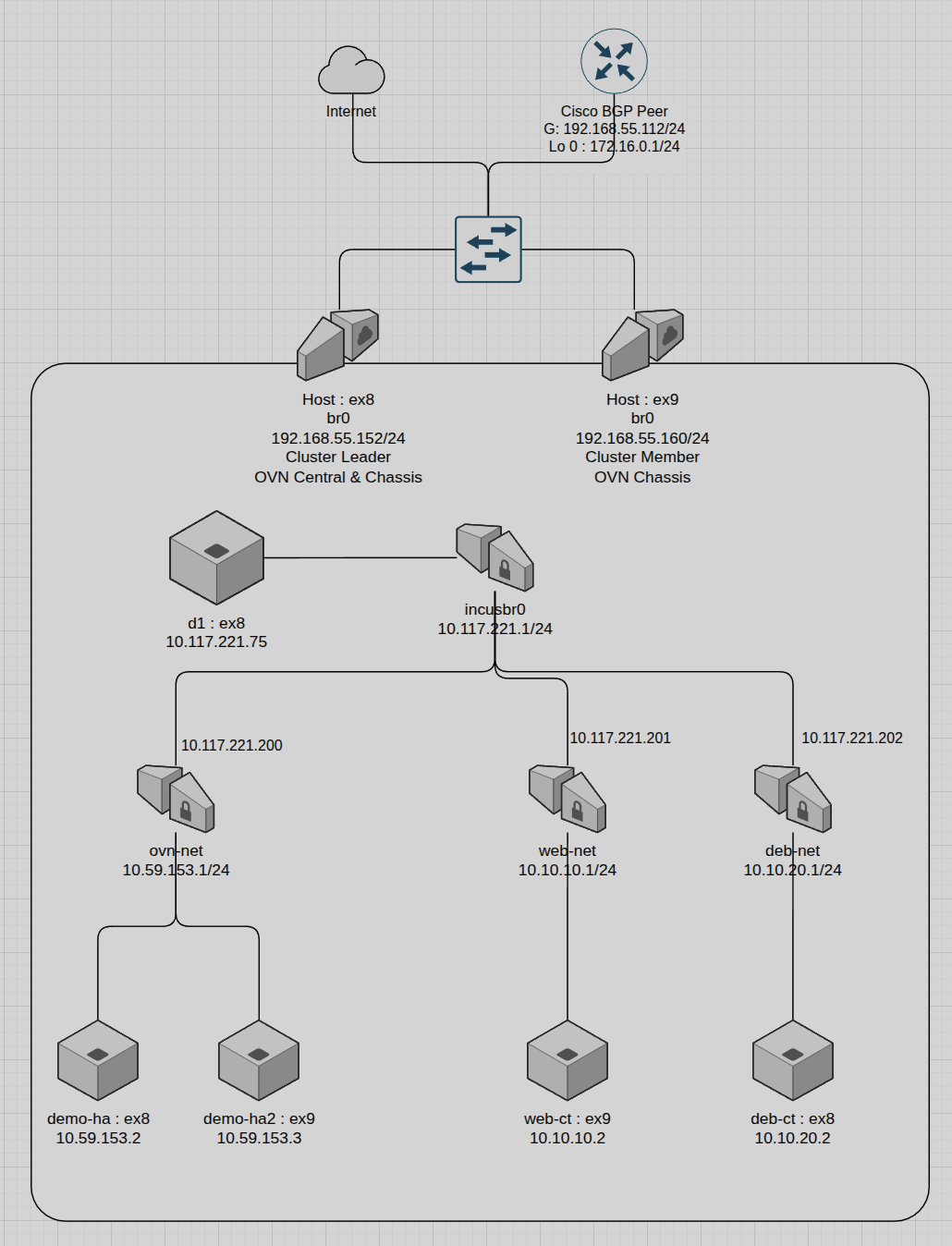

Reference with Incus doc and Gemini I created below topology.
From BGP Peer can ping to 10.117.221.75
R1#sh ip route
B 10.117.221.75 [20/0] via 192.168.55.152, 03:27:29
I also configed external-ip 10.117.221.200, 201, 202
Those are not installed BGP Peer routing table.
hooni@ex8:~$ sudo incus query /internal/debug/bgp
[sudo] password for hooni:
{
"peers": [
{
"address": "192.168.55.112",
"asn": 65001,
"count": 1,
"holdtime": 0,
"interface": "",
"password": ""
}
],
"prefixes": [
{
"nexthop": "10.117.221.201",
"owner": "network_7",
"prefix": "10.10.10.0/24"
},
{
"nexthop": "10.117.221.202",
"owner": "network_8",
"prefix": "10.10.20.0/24"
},
{
"nexthop": "0.0.0.0",
"owner": "instance_4_eth0",
"prefix": "10.117.221.75/32"
},
{
"nexthop": "10.117.221.202",
"owner": "instance_7_eth0",
"prefix": "10.117.221.202/32"
}
],
"server": {
"address": "192.168.55.152:179",
"asn": 65002,
"router_id": "192.168.55.152",
"running": true
}
}
even at d1, can’t ping to incside incusbr0
I added route to incusbr0.
hooni@ex8:~$ incus network show incusbr0
config:
bgp.ipv4.instances: "true"
bgp.peers.cisco.address: 192.168.55.112
bgp.peers.cisco.asn: "65001"
bridge.mtu: "9000"
ipv4.address: 10.117.221.1/24
ipv4.dhcp.ranges: 10.117.221.2-10.117.221.199
ipv4.nat: "true"
ipv4.ovn.ranges: 10.117.221.200-10.117.221.240
ipv4.routes: 10.10.10.0/24,10.59.153.0/24,10.10.20.0/24
ipv6.address: fd42:80ae:7bad:d131::1/64
ipv6.nat: "true"
description: ""
name: incusbr0
type: bridge
used_by:
- /1.0/instances/d1
- /1.0/networks/deb-net
- /1.0/networks/ovn-net
- /1.0/networks/web-net
- /1.0/profiles/default
managed: true
status: Created
locations:
- ex8
- ex9
project: default
And, the BGP Peer also annouce route 172.16.0.0/24.
But I can’t find this route on ex8.
Could you show me what I have wrong?
