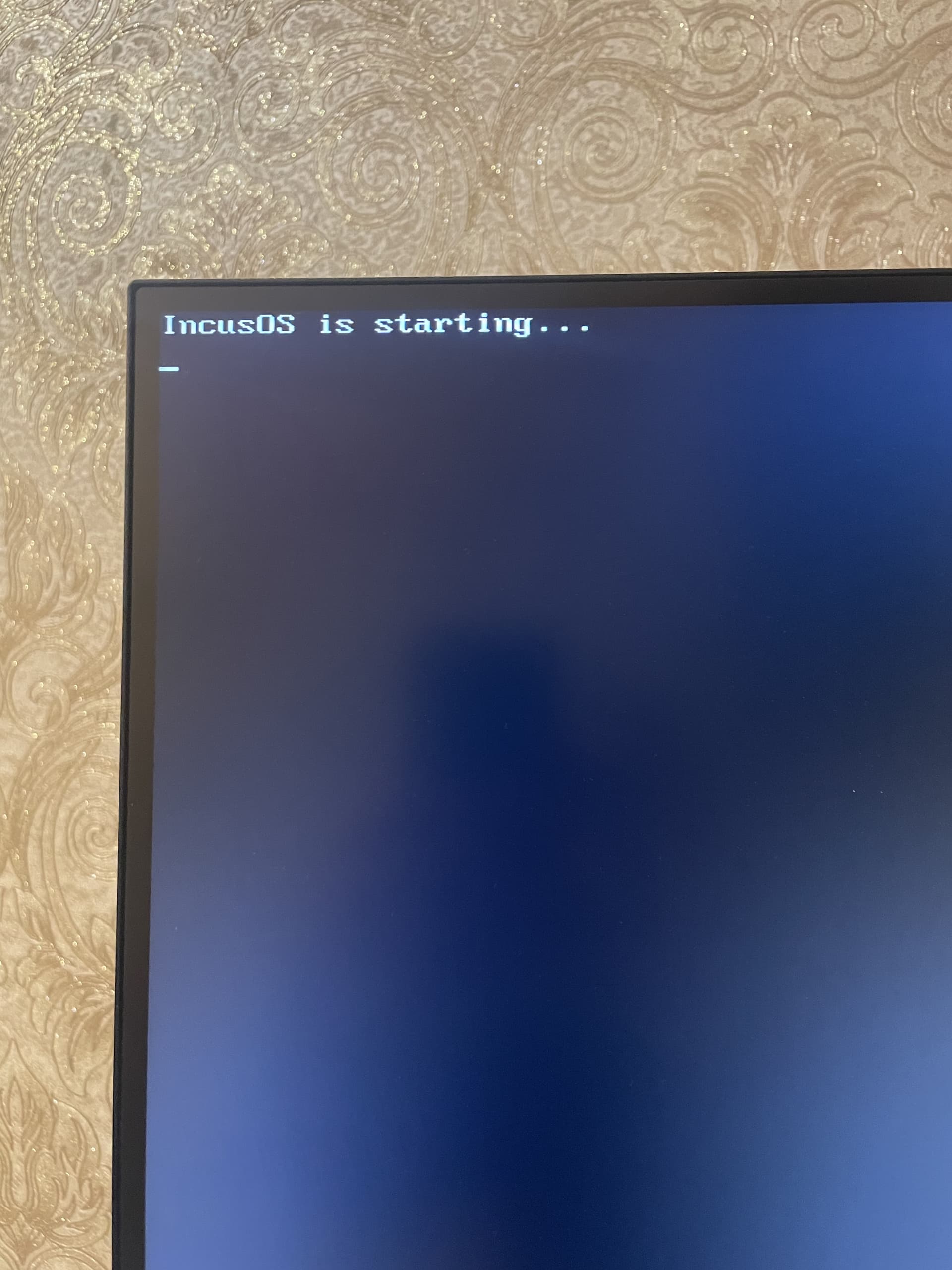

I’ve just installed IncusOS but it has no indicator of progress upon starting, just showing the starting message.
Is there a way to see logs?
Give it 10-15min, then it should hit the actual timeout.
This is usually what we’d expect if the storage controller in your system isn’t supported by the IncusOS early boot (initrd).
If after 10-15min you get a timeout error, it’d be very useful if you could boot that machine on a traditional Linux distro like a live desktop image or something and then give us a dump of lsmod and ls -lh /sys/class/block/*/device/device/driver.
We basically need to pin down what storage controller driver is used by this system, then we can add it to our initrd so a future image will boot correctly after installation.
We can also make a bit of a guess as to what this may be if we knew more about the machine. What CPU vendor is this? When was it built? Is that a NVMe or SATA drive?
(Note that there still won’t be much of a log or shell access after the timeout, but it would confirm that we’re dealing with a storage issue at least)
Will do! Only awaited couple minutes.
It’s Dell OptiPlex Micro 7020. It also had problems shutting down when installation finished, had to power-off.
Okay. The first thing I’d do is go in the BIOS and see if they have storage modes in there. If there is something like “RAID” mode, turn that off, you want the drives to be directly accessible to the OS.
Hello everyone, I run a Lenovo M710q, and tried to install IncusOS with also failure. Perhaps are also the storage drivers. Like suggested by @stgraber below is the information (if it worths include this drivers):
# lsmod
Module Size Used by
tcp_diag 12288 0
inet_diag 28672 1 tcp_diag
cfg80211 1269760 0
veth 40960 0
ebtable_filter 12288 0
ebtables 45056 1 ebtable_filter
ip_set 61440 0
ip6table_raw 12288 0
iptable_raw 12288 0
ip6table_filter 12288 0
ip6_tables 32768 2 ip6table_filter,ip6table_raw
iptable_filter 12288 0
sctp 466944 4
nf_tables 344064 0
vrf 32768 0
vxlan 147456 0
ip6_udp_tunnel 16384 2 vxlan,sctp
udp_tunnel 32768 2 vxlan,sctp
8021q 45056 0
garp 20480 1 8021q
mrp 20480 1 8021q
bonding 233472 0
tls 147456 1 bonding
softdog 12288 2
sunrpc 778240 1
binfmt_misc 24576 1
nfnetlink_log 24576 1
nfnetlink 20480 6 nf_tables,ip_set,nfnetlink_log
snd_hda_codec_hdmi 90112 1
snd_hda_codec_realtek 192512 1
snd_hda_codec_generic 102400 1 snd_hda_codec_realtek
intel_rapl_msr 20480 0
intel_rapl_common 36864 1 intel_rapl_msr
intel_tcc_cooling 12288 0
x86_pkg_temp_thermal 16384 0
intel_powerclamp 16384 0
coretemp 20480 0
kvm_intel 458752 3
i915 3936256 2
drm_buddy 20480 1 i915
kvm 1339392 2 kvm_intel
ttm 98304 1 i915
drm_display_helper 225280 1 i915
irqbypass 12288 1 kvm
crct10dif_pclmul 12288 1
mei_hdcp 28672 0
mei_pxp 16384 0
cec 90112 2 drm_display_helper,i915
polyval_clmulni 12288 0
polyval_generic 12288 1 polyval_clmulni
ghash_clmulni_intel 16384 0
sha256_ssse3 32768 0
sha1_ssse3 32768 0
aesni_intel 356352 0
crypto_simd 16384 1 aesni_intel
cryptd 24576 2 crypto_simd,ghash_clmulni_intel
rapl 20480 0
snd_soc_avs 176128 0
snd_soc_hda_codec 20480 1 snd_soc_avs
snd_hda_ext_core 32768 2 snd_soc_avs,snd_soc_hda_codec
snd_soc_core 393216 2 snd_soc_avs,snd_soc_hda_codec
snd_compress 28672 2 snd_soc_avs,snd_soc_core
ac97_bus 12288 1 snd_soc_core
snd_pcm_dmaengine 16384 1 snd_soc_core
snd_hda_intel 61440 0
snd_intel_dspcfg 36864 2 snd_soc_avs,snd_hda_intel
snd_intel_sdw_acpi 16384 1 snd_intel_dspcfg
snd_hda_codec 192512 6 snd_hda_codec_generic,snd_soc_avs,snd_hda_codec_hdmi,snd_soc_hda_codec,snd_hda_intel,snd_hda_codec_realtek
snd_hda_core 131072 8 snd_hda_codec_generic,snd_soc_avs,snd_hda_codec_hdmi,snd_soc_hda_codec,snd_hda_intel,snd_hda_ext_core,snd_hda_codec,snd_hda_codec_realtek
snd_hwdep 20480 1 snd_hda_codec
snd_pcm 180224 8 snd_soc_avs,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_compress,snd_soc_core,snd_hda_core,snd_pcm_dmaengine
intel_cstate 24576 0
snd_timer 49152 1 snd_pcm
pcspkr 12288 0
think_lmi 45056 0
snd 131072 10 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hwdep,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek,snd_timer,snd_compress,snd_soc_core,snd_pcm
firmware_attributes_class 12288 1 think_lmi
wmi_bmof 12288 0
intel_wmi_thunderbolt 16384 0
soundcore 16384 1 snd
ee1004 16384 0
intel_pmc_core 114688 0
mei_me 53248 2
rc_core 73728 1 cec
intel_vsec 20480 1 intel_pmc_core
mei 167936 5 mei_hdcp,mei_pxp,mei_me
i2c_algo_bit 16384 1 i915
pmt_telemetry 16384 1 intel_pmc_core
pmt_class 12288 1 pmt_telemetry
acpi_pad 184320 0
joydev 28672 0
input_leds 12288 0
mac_hid 12288 0
zfs 6168576 6
spl 143360 1 zfs
vhost_net 32768 3
vhost 61440 1 vhost_net
vhost_iotlb 16384 1 vhost
tap 28672 1 vhost_net
efi_pstore 12288 0
dmi_sysfs 20480 0
ip_tables 32768 2 iptable_filter,iptable_raw
x_tables 57344 7 ebtables,ip6table_filter,ip6table_raw,iptable_filter,ip6_tables,iptable_raw,ip_tables
autofs4 57344 2
btrfs 1912832 0
blake2b_generic 24576 0
xor 20480 1 btrfs
raid6_pq 118784 1 btrfs
hid_generic 12288 0
usbkbd 12288 0
usbhid 69632 0
hid 163840 2 usbhid,hid_generic
dm_thin_pool 90112 4
dm_persistent_data 110592 1 dm_thin_pool
dm_bio_prison 24576 1 dm_thin_pool
dm_bufio 53248 1 dm_persistent_data
libcrc32c 12288 4 dm_persistent_data,btrfs,nf_tables,sctp
nvme 61440 5
xhci_pci 24576 0
nvme_core 204800 6 nvme
xhci_pci_renesas 16384 1 xhci_pci
i2c_i801 36864 0
ahci 49152 0
e1000e 344064 0
crc32_pclmul 12288 0
nvme_auth 24576 1 nvme_core
i2c_smbus 16384 1 i2c_i801
xhci_hcd 364544 1 xhci_pci
libahci 53248 1 ahci
video 77824 1 i915
wmi 28672 4 video,intel_wmi_thunderbolt,wmi_bmof,think_lmi
# ls -lh /sys/class/block/*/device/device/driver
lrwxrwxrwx 1 root root 0 Nov 11 20:12 /sys/class/block/nvme0n1/device/device/driver -> ../../../../bus/pci/drivers/nvme
Thank you in advance
Were you able to check your BIOS for any setting related to RAID or Intel VMD which could be causing this issue?
From what you’re showing, this should be a pretty standard NVMe set up, so I’m wondering if there’s some weirdness coming out of the motherboard here.

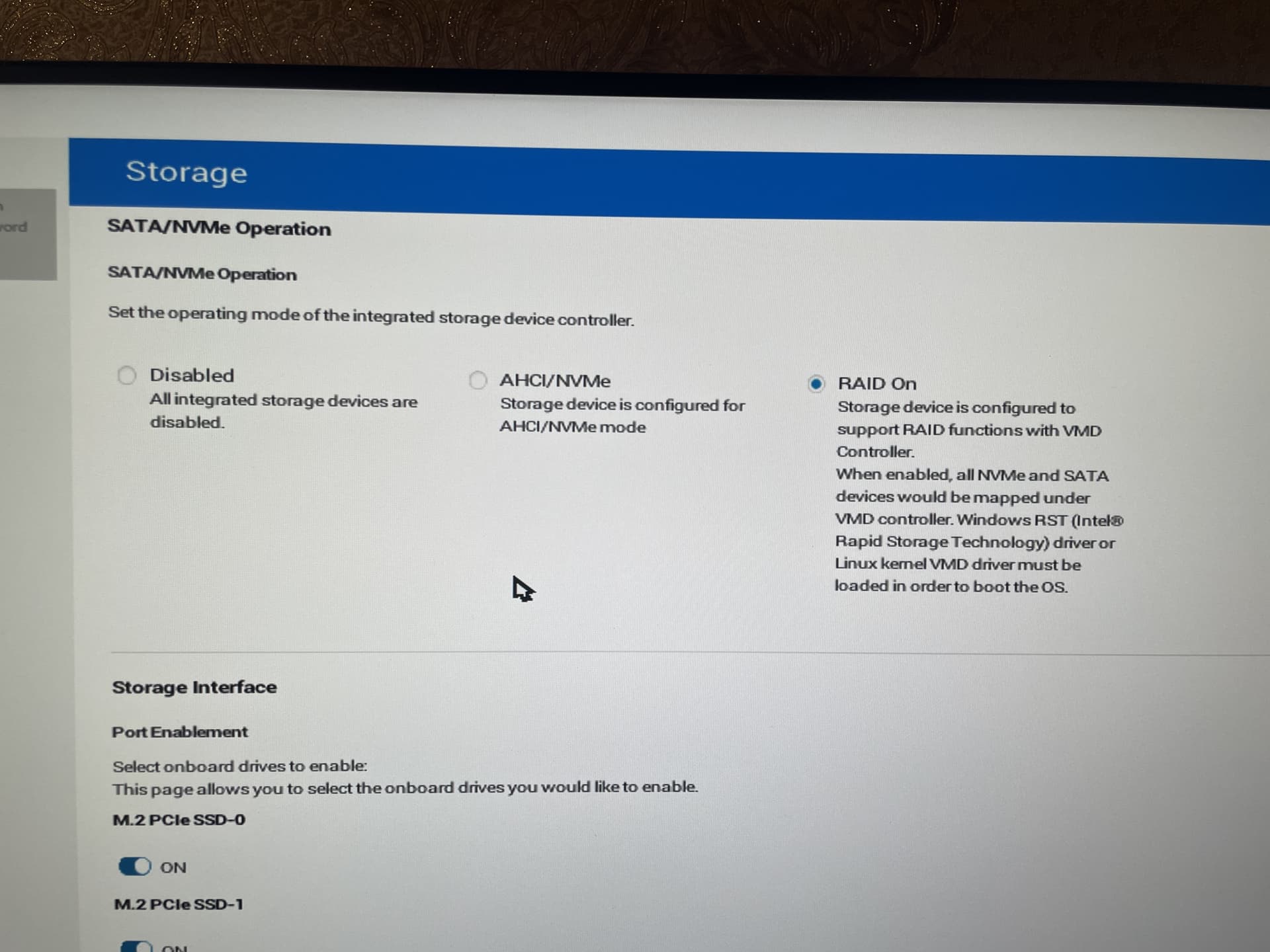

You are correct, it was in BIOS mode indeed. I’ve put it to nvme mode:
I’m not sure if that was the thing which helped or that I just didn’t wait enough last time, after 3 minutes it boots further now.
Yeah, it probably was the issue. I’ll look at including that Intel driver, though in general you get better performance when you have those kind of built-in RAID features disabled (unless you’re actually using it for RAID).
Might have a related issue for a system based on the Asrock x570 Phantom Gaming 4 motherboard (BIOS: 5.67 from 2025/9/8).
Created the .img from IncusOS downloader
- Image Type: USB
- Image architecture: x86_64
- Image usage: Operation
- Image application: Incus
- Installation Target: N/A
- Application configuration: Default checked, included my client cert
- Network configuration: DHCPv4 and SLAAC on every interface
Issue, hangs at IncusOS is starting for 10-15 min then outputs a message about emergency mode. Repeats this forever.
IncusOS is starting…
You are in emergency mode. After logging in, type “journalctl -xb” to view
system logs, “systemctl reboot” to reboot, or “exit”
to continue bootup.Cannot open access to console, the root account is locked.
See sulogin(8) man page for more details.Press Enter to continue.
Reloading system manager configuration.
Starting initrd.target
IncusOS is starting…
(I removed the AMD gpu since this output, leaving only the Nvidia RTX)
Motherboard: Asrock x570 Phantom Gaming 4 (BIOS: 5.67 from 2025/9/8)
ubuntu@ubuntu:~$ lsmod
Module Size Used by
tcp_diag 12288 0
udp_diag 12288 0
inet_diag 28672 2 tcp_diag,udp_diag
joydev 32768 0
hid_generic 12288 0
usbhid 77824 0
hid 180224 2 usbhid,hid_generic
btrfs 2019328 0
blake2b_generic 24576 0
ufs 126976 0
qnx4 12288 0
hfsplus 135168 0
hfs 77824 0
minix 49152 0
ntfs 139264 0
msdos 16384 0
jfs 299008 0
nls_ucs2_utils 8192 1 jfs
xfs 2363392 0
cfg80211 1323008 0
snd_seq_dummy 12288 0
snd_hrtimer 12288 1
qrtr 53248 2
binfmt_misc 24576 1
amdgpu 17100800 0
amdxcp 12288 1 amdgpu
drm_buddy 20480 1 amdgpu
snd_hda_codec_realtek 200704 1
snd_hda_codec_generic 122880 1 snd_hda_codec_realtek
snd_hda_codec_hdmi 94208 2
snd_hda_intel 61440 3
snd_intel_dspcfg 36864 1 snd_hda_intel
snd_intel_sdw_acpi 16384 1 snd_intel_dspcfg
snd_hda_codec 204800 4 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec_realtek
snd_hda_core 139264 5 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek
snd_hwdep 20480 1 snd_hda_codec
zfs 6598656 6
snd_pcm 192512 4 snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_hda_core
snd_seq_midi 24576 0
snd_seq_midi_event 16384 1 snd_seq_midi
snd_rawmidi 57344 1 snd_seq_midi
spl 180224 1 zfs
nouveau 3096576 2
snd_seq 114688 9 snd_seq_midi,snd_seq_midi_event,snd_seq_dummy
radeon 2179072 21
snd_seq_device 16384 3 snd_seq,snd_seq_midi,snd_rawmidi
snd_timer 49152 3 snd_seq,snd_hrtimer,snd_pcm
mxm_wmi 12288 1 nouveau
drm_gpuvm 45056 1 nouveau
drm_exec 12288 3 drm_gpuvm,amdgpu,nouveau
gpu_sched 61440 2 amdgpu,nouveau
drm_suballoc_helper 16384 2 amdgpu,radeon
drm_ttm_helper 12288 3 amdgpu,radeon,nouveau
intel_rapl_msr 20480 0
ttm 110592 4 amdgpu,radeon,drm_ttm_helper,nouveau
intel_rapl_common 40960 1 intel_rapl_msr
drm_display_helper 237568 3 amdgpu,radeon,nouveau
amd64_edac 65536 0
cec 94208 1 drm_display_helper
edac_mce_amd 28672 1 amd64_edac
snd 143360 19 snd_hda_codec_generic,snd_seq,snd_seq_device,snd_hda_codec_hdmi,snd_hwdep,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek,snd_timer,snd_pcm,snd_rawmidi
rc_core 73728 1 cec
kvm_amd 208896 0
video 73728 3 amdgpu,radeon,nouveau
soundcore 16384 1 snd
i2c_piix4 32768 0
k10temp 16384 0
kvm 1404928 1 kvm_amd
ccp 143360 1 kvm_amd
input_leds 12288 0
irqbypass 12288 1 kvm
mac_hid 12288 0
wmi_bmof 12288 0
serio_raw 20480 0
rapl 20480 0
msr 12288 0
parport_pc 53248 0
ppdev 24576 0
lp 28672 0
parport 73728 3 parport_pc,lp,ppdev
efi_pstore 12288 0
nfnetlink 20480 1
dmi_sysfs 24576 0
ip_tables 32768 0
x_tables 65536 1 ip_tables
autofs4 57344 2
overlay 212992 1
nls_iso8859_1 12288 1
raid10 73728 0
raid456 196608 0
async_raid6_recov 20480 1 raid456
async_memcpy 16384 2 raid456,async_raid6_recov
async_pq 20480 2 raid456,async_raid6_recov
async_xor 16384 3 async_pq,raid456,async_raid6_recov
async_tx 16384 5 async_pq,async_memcpy,async_xor,raid456,async_raid6_recov
xor 20480 2 async_xor,btrfs
raid6_pq 126976 4 async_pq,btrfs,raid456,async_raid6_recov
libcrc32c 12288 3 btrfs,xfs,raid456
raid1 57344 0
raid0 24576 0
dm_mirror 24576 0
dm_region_hash 24576 1 dm_mirror
dm_log 20480 2 dm_region_hash,dm_mirror
mlx4_ib 294912 0
ib_uverbs 184320 1 mlx4_ib
ib_core 507904 2 mlx4_ib,ib_uverbs
mlx4_en 192512 0
crct10dif_pclmul 12288 1
crc32_pclmul 12288 0
uas 28672 0
polyval_clmulni 12288 0
usb_storage 86016 2 uas
polyval_generic 12288 1 polyval_clmulni
ghash_clmulni_intel 16384 0
nvme 61440 0
sha256_ssse3 32768 0
sha1_ssse3 32768 0
igb 319488 0
mlx4_core 483328 2 mlx4_ib,mlx4_en
ahci 49152 0
nvme_core 208896 1 nvme
xhci_pci 24576 0
libahci 53248 1 ahci
i2c_algo_bit 16384 4 igb,amdgpu,radeon,nouveau
xhci_pci_renesas 20480 1 xhci_pci
dca 16384 1 igb
nvme_auth 28672 1 nvme_core
wmi 28672 4 video,wmi_bmof,mxm_wmi,nouveau
aesni_intel 356352 0
crypto_simd 16384 1 aesni_intel
cryptd 24576 2 crypto_simd,ghash_clmulni_intel
ubuntu@ubuntu:~$ ls -lh /sys/class/block/*/device/device/driver
lrwxrwxrwx 1 root root 0 Nov 11 12:57 /sys/class/block/nvme0n1/device/device/driver → ../../../../../../bus/pci/drivers/nvme
ubuntu@ubuntu:~$
Did you get to check your BIOS for some kind of RAID or similar config option?
I did. The only attached drive is NVMe via AHCI mode. Would that even matter when running IncusOS in operating mode from the usb SSD I put the img on?
Ah no, that wouldn’t matter.
What kind of USB device is that?
Is it a simple USB stick or a USB enclosure/SSD thing?
I see uas loaded (USB attached SCSI) which is different from regular usb-storage.
I’ll make sure we have uas in our early kernel modules as well as that Intel RAID driver so we can hopefully quickly solve both.
base: Add Intel vmd driver by stgraber · Pull Request #537 · lxc/incus-os · GitHub should take care of the most common Intel RAID mode issue.
For the USB drive, I’m confused because we do have uas already included…
Would be great if you could share some more details on the type of drive used.
Disk is AHCI. I have the same output loop:
IncusOS is starting…
You are in emergency mode. After logging in, type “journalctl -xb” to view
system logs, “systemctl reboot” to reboot, or “exit”
to continue bootup.
Cannot open access to console, the root account is locked.
See sulogin(8) man page for more details.
Press Enter to continue.
Reloading system manager configuration.
Starting initrd.target
IncusOS is starting…
Are any additional details that I can share? Maybe is the Lenovo m710q Tiny…
Hello, I found the issue. Was due the fact that I have an operating system installed in the nvme disk. I cleaned the partitions, and select the option in IncusOS installer to “Wipe the disk”.

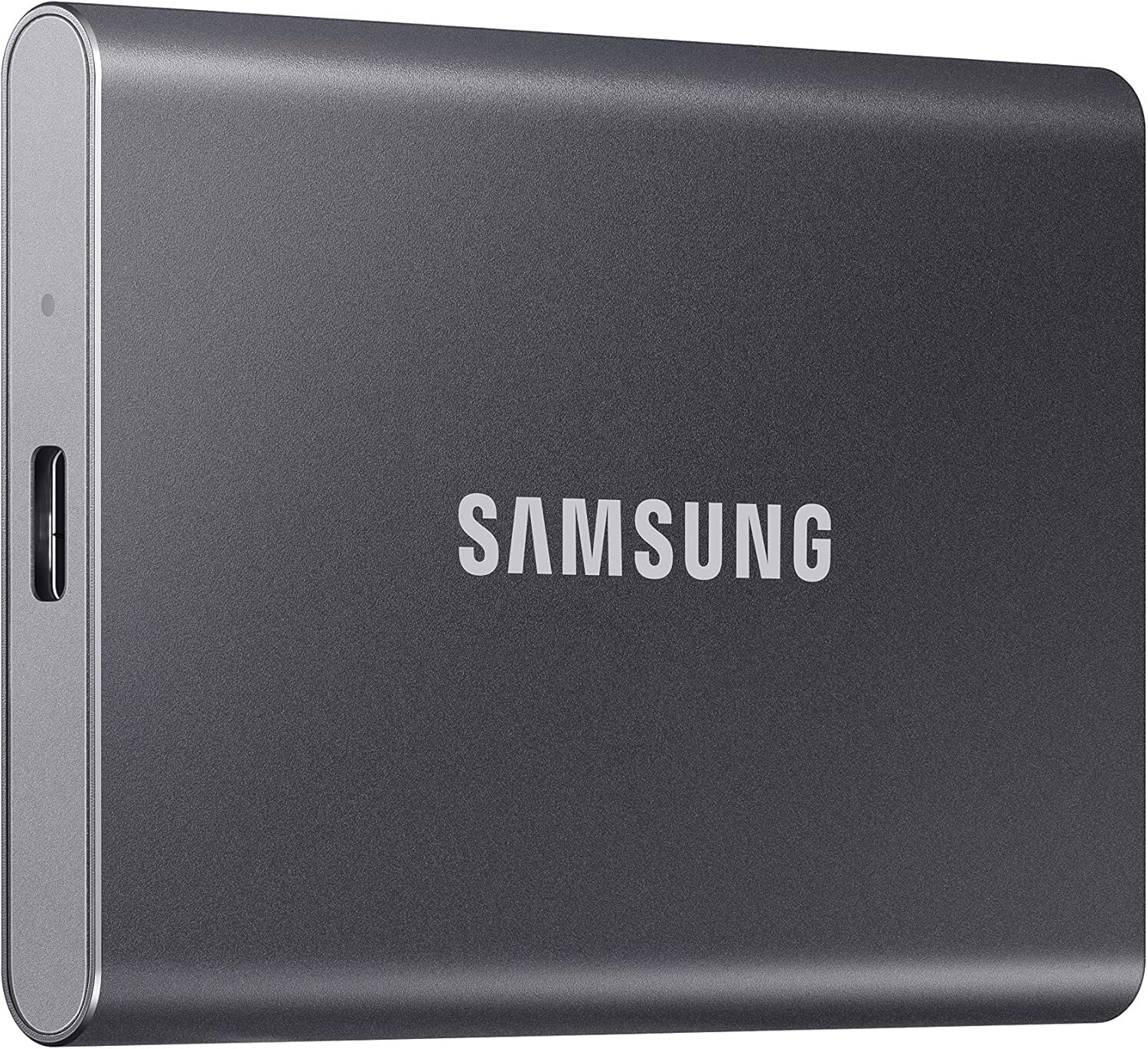

Not just a USB stick. This: SAMSUNG T7 Portable SSD, 1TB External Solid State Drive, Speeds Up to 1,050MB/s, USB 3.2 Gen 2, Reliable Storage for Gaming, Students, Professionals, MU-PC1T0T/AM, Gray
I’ll connect it and do another lsmod, lsusb, lspci from live media in a bit
I can also try running from a simple usb stick instead
While booted into ubuntu live with the samsung t7 attached. (ubuntu is on the sandisk (128 g)
lsmod
root@ubuntu:/home/ubuntu# lsmod
Module Size Used by
btrfs 2019328 0
blake2b_generic 24576 0
ufs 126976 0
qnx4 12288 0
hfsplus 135168 0
hfs 77824 0
minix 49152 0
ntfs 139264 0
msdos 16384 0
jfs 299008 0
nls_ucs2_utils 8192 1 jfs
xfs 2363392 0
cfg80211 1323008 0
snd_seq_dummy 12288 0
snd_hrtimer 12288 1
qrtr 53248 2
binfmt_misc 24576 1
zfs 6598656 6
spl 180224 1 zfs
snd_hda_codec_realtek 200704 1
snd_hda_codec_generic 122880 1 snd_hda_codec_realtek
snd_hda_codec_hdmi 94208 1
snd_hda_intel 61440 2
snd_intel_dspcfg 36864 1 snd_hda_intel
snd_intel_sdw_acpi 16384 1 snd_intel_dspcfg
snd_hda_codec 204800 4 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec_realtek
snd_hda_core 139264 5 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek
snd_hwdep 20480 1 snd_hda_codec
snd_pcm 192512 4 snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_hda_core
snd_seq_midi 24576 0
snd_seq_midi_event 16384 1 snd_seq_midi
nouveau 3096576 0
snd_rawmidi 57344 1 snd_seq_midi
joydev 32768 0
input_leds 12288 0
snd_seq 114688 9 snd_seq_midi,snd_seq_midi_event,snd_seq_dummy
mxm_wmi 12288 1 nouveau
snd_seq_device 16384 3 snd_seq,snd_seq_midi,snd_rawmidi
drm_gpuvm 45056 1 nouveau
snd_timer 49152 3 snd_seq,snd_hrtimer,snd_pcm
drm_exec 12288 2 drm_gpuvm,nouveau
gpu_sched 61440 1 nouveau
intel_rapl_msr 20480 0
intel_rapl_common 40960 1 intel_rapl_msr
drm_ttm_helper 12288 1 nouveau
ttm 110592 2 drm_ttm_helper,nouveau
amd64_edac 65536 0
drm_display_helper 237568 1 nouveau
edac_mce_amd 28672 1 amd64_edac
cec 94208 1 drm_display_helper
snd 143360 17 snd_hda_codec_generic,snd_seq,snd_seq_device,snd_hda_codec_hdmi,snd_hwdep,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek,snd_timer,snd_pcm,snd_rawmidi
rc_core 73728 1 cec
kvm_amd 208896 0
video 73728 1 nouveau
soundcore 16384 1 snd
i2c_piix4 32768 0
k10temp 16384 0
kvm 1404928 1 kvm_amd
ccp 143360 1 kvm_amd
irqbypass 12288 1 kvm
mac_hid 12288 0
rapl 20480 0
wmi_bmof 12288 0
msr 12288 0
parport_pc 53248 0
ppdev 24576 0
lp 28672 0
parport 73728 3 parport_pc,lp,ppdev
efi_pstore 12288 0
nfnetlink 20480 1
dmi_sysfs 24576 0
ip_tables 32768 0
x_tables 65536 1 ip_tables
autofs4 57344 2
overlay 212992 1
nls_iso8859_1 12288 1
raid10 73728 0
raid456 196608 0
async_raid6_recov 20480 1 raid456
async_memcpy 16384 2 raid456,async_raid6_recov
async_pq 20480 2 raid456,async_raid6_recov
async_xor 16384 3 async_pq,raid456,async_raid6_recov
async_tx 16384 5 async_pq,async_memcpy,async_xor,raid456,async_raid6_recov
xor 20480 2 async_xor,btrfs
raid6_pq 126976 4 async_pq,btrfs,raid456,async_raid6_recov
libcrc32c 12288 3 btrfs,xfs,raid456
raid1 57344 0
raid0 24576 0
dm_mirror 24576 0
dm_region_hash 24576 1 dm_mirror
dm_log 20480 2 dm_region_hash,dm_mirror
mlx4_ib 294912 0
ib_uverbs 184320 1 mlx4_ib
ib_core 507904 2 mlx4_ib,ib_uverbs
mlx4_en 192512 0
hid_generic 12288 0
usbhid 77824 0
hid 180224 2 usbhid,hid_generic
crct10dif_pclmul 12288 1
crc32_pclmul 12288 0
uas 28672 0
polyval_clmulni 12288 0
usb_storage 86016 2 uas
polyval_generic 12288 1 polyval_clmulni
ghash_clmulni_intel 16384 0
nvme 61440 0
sha256_ssse3 32768 0
sha1_ssse3 32768 0
igb 319488 0
mlx4_core 483328 2 mlx4_ib,mlx4_en
nvme_core 208896 1 nvme
ahci 49152 0
i2c_algo_bit 16384 2 igb,nouveau
xhci_pci 24576 0
libahci 53248 1 ahci
nvme_auth 28672 1 nvme_core
dca 16384 1 igb
xhci_pci_renesas 20480 1 xhci_pci
wmi 28672 4 video,wmi_bmof,mxm_wmi,nouveau
aesni_intel 356352 0
crypto_simd 16384 1 aesni_intel
cryptd 24576 2 crypto_simd,ghash_clmulni_intel
lsusb
root@ubuntu:/home/ubuntu# lsusb
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 002: ID 04e8:4001 Samsung Electronics Co., Ltd PSSD T7
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 005 Device 002: ID 046d:c31c Logitech, Inc. Keyboard K120
Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 006 Device 002: ID 0781:5591 SanDisk Corp. Ultra Flair
lspci
root@ubuntu:/home/ubuntu# lspci
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Root Complex
00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge
00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 0
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 1
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 2
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 3
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 4
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 5
00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 6
00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 7
01:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream
02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge
02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge
02:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge
02:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge
02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge
02:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge
03:00.0 Non-Volatile memory controller: Phison Electronics Corporation PS5021-E21 PCIe4 NVMe Controller (DRAM-less) (rev 01)
04:00.0 Ethernet controller: Mellanox Technologies MT26448 [ConnectX EN 10GigE, PCIe 2.0 5GT/s] (rev b0)
05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
06:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
06:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
06:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
07:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
08:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
09:00.0 VGA compatible controller: NVIDIA Corporation AD102 [GeForce RTX 4090] (rev a1)
09:00.1 Audio device: NVIDIA Corporation AD102 High Definition Audio Controller (rev a1)
0a:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
0b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
0b:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP
0b:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
0b:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller
lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
loop0 7:0 0 1.6G 1 loop /rofs
loop1 7:1 0 471M 1 loop
loop2 7:2 0 874.4M 1 loop
loop3 7:3 0 4K 1 loop /snap/bare/5
loop4 7:4 0 74.3M 1 loop /snap/core22/1564
loop5 7:5 0 269.8M 1 loop /snap/firefox/4793
loop6 7:6 0 10.7M 1 loop /snap/firmware-updater/127
loop7 7:7 0 505.1M 1 loop /snap/gnome-42-2204/176
loop8 7:8 0 91.7M 1 loop /snap/gtk-common-themes/1535
loop9 7:9 0 10.5M 1 loop /snap/snap-store/1173
loop10 7:10 0 149.6M 1 loop /snap/thunderbird/507
loop11 7:11 0 116.8M 1 loop /snap/ubuntu-desktop-bootstrap/237
loop12 7:12 0 38.8M 1 loop /snap/snapd/21759
loop13 7:13 0 500K 1 loop /snap/snapd-desktop-integration/178
sda 8:0 0 931.5G 0 disk
├─sda1 8:1 0 2G 0 part
├─sda2 8:2 0 100M 0 part
├─sda3 8:3 0 16K 0 part
├─sda4 8:4 0 100M 0 part
├─sda5 8:5 0 1G 0 part
├─sda6 8:6 0 16K 0 part
├─sda7 8:7 0 100M 0 part
├─sda8 8:8 0 1G 0 part
├─sda9 8:9 0 4G 0 part
├─sda10 8:10 0 25G 0 part
└─sda11 8:11 0 898.2G 0 part
sdb 8:16 1 114.6G 0 disk
└─sdb1 8:17 1 114.6G 0 part /cdrom
nvme0n1 259:0 0 3.7T 0 disk
├─nvme0n1p1 259:1 0 16M 0 part
└─nvme0n1p2 259:2 0 3.7T 0 part
fdisk -l
root@ubuntu:/home/ubuntu# fdisk -l
Disk /dev/loop0: 1.63 GiB, 1752752128 bytes, 3423344 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop1: 471.01 MiB, 493887488 bytes, 964624 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop2: 874.37 MiB, 916840448 bytes, 1790704 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop3: 4 KiB, 4096 bytes, 8 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop4: 74.27 MiB, 77881344 bytes, 152112 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop5: 269.77 MiB, 282873856 bytes, 552488 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop6: 10.72 MiB, 11239424 bytes, 21952 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop7: 505.09 MiB, 529625088 bytes, 1034424 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/nvme0n1: 3.73 TiB, 4096805658624 bytes, 8001573552 sectors
Disk model: SPCC M.2 PCIe SSD
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 45E9B4BD-DA3D-4459-8737-E110E6338CE2
Device Start End Sectors Size Type
/dev/nvme0n1p1 34 32767 32734 16M Microsoft reserved
/dev/nvme0n1p2 32768 8001570815 8001538048 3.7T Microsoft basic data
Disk /dev/sda: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors
Disk model: PSSD T7
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 33553920 bytes
Disklabel type: gpt
Disk identifier: 1A88F3E7-6F14-436C-B3BB-444A02B23D7D
Device Start End Sectors Size Type
/dev/sda1 2048 4196351 4194304 2G EFI System
/dev/sda2 4196352 4401151 204800 100M Linux filesystem
/dev/sda3 4401152 4401183 32 16K Linux /usr verity sign. (x86-64)
/dev/sda4 4401184 4605983 204800 100M Linux /usr verity (x86-64)
/dev/sda5 4605984 6703135 2097152 1G Linux /usr (x86-64)
/dev/sda6 6703136 6703167 32 16K Linux /usr verity sign. (x86-64)
/dev/sda7 6703168 6907967 204800 100M Linux /usr verity (x86-64)
/dev/sda8 6907968 9005119 2097152 1G Linux /usr (x86-64)
/dev/sda9 9005120 17393727 8388608 4G Linux swap
/dev/sda10 17393728 69822527 52428800 25G Linux root (x86-64)
/dev/sda11 69822528 1953525127 1883702600 898.2G Linux filesystem
Disk /dev/sdb: 114.61 GiB, 123060879360 bytes, 240353280 sectors
Disk model: SanDisk 3.2Gen1
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x45e7392f
Device Boot Start End Sectors Size Id Type
/dev/sdb1 * 2048 240353215 240351168 114.6G c W95 FAT32 (LBA)
Disk /dev/loop8: 91.69 MiB, 96141312 bytes, 187776 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop9: 10.54 MiB, 11051008 bytes, 21584 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop10: 149.63 MiB, 156901376 bytes, 306448 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop11: 116.78 MiB, 122449920 bytes, 239160 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop12: 38.83 MiB, 40714240 bytes, 79520 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop13: 500 KiB, 512000 bytes, 1000 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
efibootmgr -v
root@ubuntu:/home/ubuntu# efibootmgr -v
BootCurrent: 0002
Timeout: 1 seconds
BootOrder: 0001,0002
Boot0001* UEFI OS HD(1,GPT,905d8207-09ff-462d-a41e-7f7e73d5a692,0x800,0x400000)/File(\EFI\BOOT\BOOTX64.EFI)0000424f
dp: 04 01 2a 00 01 00 00 00 00 08 00 00 00 00 00 00 00 00 40 00 00 00 00 00 07 82 5d 90 ff 09 2d 46 a4 1e 7f 7e 73 d5 a6 92 02 02 / 04 04 30 00 5c 00 45 00 46 00 49 00 5c 00 42 00 4f 00 4f 00 54 00 5c 00 42 00 4f 00 4f 00 54 00 58 00 36 00 34 00 2e 00 45 00 46 00 49 00 00 00 / 7f ff 04 00
data: 00 00 42 4f
Boot0002* UEFI: USB, Partition 1 PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(7,0)/HD(1,MBR,0x45e7392f,0x800,0xe5377c0)0000424f
dp: 02 01 0c 00 d0 41 03 0a 00 00 00 00 / 01 01 06 00 01 08 / 01 01 06 00 03 00 / 03 05 06 00 07 00 / 04 01 2a 00 01 00 00 00 00 08 00 00 00 00 00 00 c0 77 53 0e 00 00 00 00 2f 39 e7 45 00 00 00 00 00 00 00 00 00 00 00 00 01 01 / 7f ff 04 00
data: 00 00 42 4f
lshw -short
root@ubuntu:/home/ubuntu# lshw -short
H/W path Device Class Description
==========================================================================
system X570 Phantom Gaming 4 (To Be Filled By O.E.M.)
/0 bus X570 Phantom Gaming 4
/0/0 memory 64KiB BIOS
/0/f memory 64GiB System Memory
/0/f/0 memory [empty]
/0/f/1 memory 32GiB DIMM DDR4 Synchronous Unbuffered (Unregistered) 3200 MHz (0.3 ns)
/0/f/2 memory [empty]
/0/f/3 memory 32GiB DIMM DDR4 Synchronous Unbuffered (Unregistered) 3200 MHz (0.3 ns)
/0/12 memory 768KiB L1 cache
/0/13 memory 6MiB L2 cache
/0/14 memory 64MiB L3 cache
/0/15 processor AMD Ryzen 9 5900X 12-Core Processor
/0/100 bridge Starship/Matisse Root Complex
/0/100/1.2 bridge Starship/Matisse GPP Bridge
/0/100/1.2/0 bridge Matisse Switch Upstream
/0/100/1.2/0/1 bridge Matisse PCIe GPP Bridge
/0/100/1.2/0/1/0 /dev/nvme0 storage SPCC M.2 PCIe SSD
/0/100/1.2/0/1/0/0 hwmon0 disk NVMe disk
/0/100/1.2/0/1/0/2 /dev/ng0n1 disk NVMe disk
/0/100/1.2/0/1/0/1 /dev/nvme0n1 disk 4096GB NVMe disk
/0/100/1.2/0/1/0/1/1 /dev/nvme0n1p1 volume 15MiB reserved partition
/0/100/1.2/0/1/0/1/2 /dev/nvme0n1p2 volume 3815GiB Windows NTFS volume
/0/100/1.2/0/2 bridge Matisse PCIe GPP Bridge
/0/100/1.2/0/2/0 enp4s0 network MT26448 [ConnectX EN 10GigE, PCIe 2.0 5GT/s]
/0/100/1.2/0/6 bridge Matisse PCIe GPP Bridge
/0/100/1.2/0/6/0 enp5s0 network I211 Gigabit Network Connection
/0/100/1.2/0/8 bridge Matisse PCIe GPP Bridge
/0/100/1.2/0/8/0 generic Starship/Matisse Reserved SPP
/0/100/1.2/0/8/0.1 bus Matisse USB 3.0 Host Controller
/0/100/1.2/0/8/0.1/0 usb1 bus xHCI Host Controller
/0/100/1.2/0/8/0.1/1 usb2 bus xHCI Host Controller
/0/100/1.2/0/8/0.3 bus Matisse USB 3.0 Host Controller
/0/100/1.2/0/8/0.3/0 usb3 bus xHCI Host Controller
/0/100/1.2/0/8/0.3/0/6 scsi2 storage PSSD T7
/0/100/1.2/0/8/0.3/0/6/0.0.0 /dev/sda disk 1TB PSSD T7
/0/100/1.2/0/8/0.3/0/6/0.0.0/1 /dev/sda1 volume 2047MiB Windows FAT volume
/0/100/1.2/0/8/0.3/0/6/0.0.0/2 /dev/sda2 volume 99MiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/3 /dev/sda3 volume 15KiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/4 /dev/sda4 volume 99MiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/5 /dev/sda5 volume 1023MiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/6 /dev/sda6 volume 15KiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/7 /dev/sda7 volume 99MiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/8 /dev/sda8 volume 1023MiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/9 /dev/sda9 volume 4095MiB swap partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/a /dev/sda10 volume 24GiB EFI partition
/0/100/1.2/0/8/0.3/0/6/0.0.0/b /dev/sda11 volume 898GiB EFI partition
/0/100/1.2/0/8/0.3/1 usb4 bus xHCI Host Controller
/0/100/1.2/0/9 bridge Matisse PCIe GPP Bridge
/0/100/1.2/0/9/0 storage FCH SATA Controller [AHCI mode]
/0/100/1.2/0/a bridge Matisse PCIe GPP Bridge
/0/100/1.2/0/a/0 storage FCH SATA Controller [AHCI mode]
/0/100/3.1 bridge Starship/Matisse GPP Bridge
/0/100/3.1/0 display AD102 [GeForce RTX 4090]
/0/100/3.1/0.1 card0 multimedia AD102 High Definition Audio Controller
/0/100/3.1/0.1/0 input5 input HDA NVidia HDMI/DP,pcm=3
/0/100/3.1/0.1/1 input6 input HDA NVidia HDMI/DP,pcm=7
/0/100/3.1/0.1/2 input7 input HDA NVidia HDMI/DP,pcm=8
/0/100/3.1/0.1/3 input8 input HDA NVidia HDMI/DP,pcm=9
/0/100/7.1 bridge Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
/0/100/7.1/0 generic Starship/Matisse PCIe Dummy Function
/0/100/8.1 bridge Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]
/0/100/8.1/0 generic Starship/Matisse Reserved SPP
/0/100/8.1/0.1 generic Starship/Matisse Cryptographic Coprocessor PSPCPP
/0/100/8.1/0.3 bus Matisse USB 3.0 Host Controller
/0/100/8.1/0.3/0 usb5 bus xHCI Host Controller
/0/100/8.1/0.3/0/1 input2 input Logitech USB Keyboard System Control
/0/100/8.1/0.3/1 usb6 bus xHCI Host Controller
/0/100/8.1/0.3/1/4 scsi3 storage SanDisk 3.2Gen1
/0/100/8.1/0.3/1/4/0.0.0 /dev/sdb disk 123GB SanDisk 3.2Gen1
/0/100/8.1/0.3/1/4/0.0.0/0 /dev/sdb disk 123GB
/0/100/8.1/0.3/1/4/0.0.0/0/1 /dev/sdb1 volume 114GiB Windows FAT volume
/0/100/8.1/0.4 card1 multimedia Starship/Matisse HD Audio Controller
/0/100/8.1/0.4/0 input10 input HD-Audio Generic Rear Mic
/0/100/8.1/0.4/1 input11 input HD-Audio Generic Line
/0/100/8.1/0.4/2 input12 input HD-Audio Generic Line Out
/0/100/8.1/0.4/3 input13 input HD-Audio Generic Front Headphone
/0/100/8.1/0.4/4 input9 input HD-Audio Generic Front Mic
/0/100/14 bus FCH SMBus Controller
/0/100/14.3 bridge FCH LPC Bridge
/0/100/14.3/0 system PnP device PNP0c01
/0/100/14.3/1 system PnP device PNP0c02
/0/100/14.3/2 system PnP device PNP0c02
/0/100/14.3/3 system PnP device PNP0b00
/0/100/14.3/4 system PnP device PNP0c02
/0/100/14.3/5 communication PnP device PNP0501
/0/100/14.3/6 system PnP device PNP0c02
/0/101 bridge Starship/Matisse PCIe Dummy Host Bridge
/0/102 bridge Starship/Matisse PCIe Dummy Host Bridge
/0/103 bridge Starship/Matisse PCIe Dummy Host Bridge
/0/104 bridge Starship/Matisse PCIe Dummy Host Bridge
/0/105 bridge Starship/Matisse PCIe Dummy Host Bridge
/0/106 bridge Starship/Matisse PCIe Dummy Host Bridge
/0/107 bridge Starship/Matisse PCIe Dummy Host Bridge
/0/108 bridge Matisse/Vermeer Data Fabric: Device 18h; Function 0
/0/109 bridge Matisse/Vermeer Data Fabric: Device 18h; Function 1
/0/10a bridge Matisse/Vermeer Data Fabric: Device 18h; Function 2
/0/10b bridge Matisse/Vermeer Data Fabric: Device 18h; Function 3
/0/10c bridge Matisse/Vermeer Data Fabric: Device 18h; Function 4
/0/10d bridge Matisse/Vermeer Data Fabric: Device 18h; Function 5
/0/10e bridge Matisse/Vermeer Data Fabric: Device 18h; Function 6
/0/10f bridge Matisse/Vermeer Data Fabric: Device 18h; Function 7
/1 /dev/fb0 display simpledrmdrmfb
/2 input0 input Power Button
/3 input1 input Power Button
dmesg | grep -i tpm
root@ubuntu:/home/ubuntu# dmesg | grep -i tpm
[ 0.000000] efi: ACPI=0xbd44d000 ACPI 2.0=0xbd44d014 TPMFinalLog=0xbd417000 SMBIOS=0xbde23000 SMBIOS 3.0=0xbde22000 MEMATTR=0xb801d518 ESRT=0xb7b29418 MOKvar=0xbde6b000 INITRD=0xb9955598 RNG=0xbcd48018 TPMEventLog=0xb7a6b018
[ 0.003778] ACPI: TPM2 0x00000000BCD5C000 00004C (v04 ALASKA A M I 00000001 AMI 00000000)
[ 0.003799] ACPI: Reserving TPM2 table memory at [mem 0xbcd5c000-0xbcd5c04b]
[ 0.493958] tpm_crb MSFT0101:00: Disabling hwrng
[ 9.858414] systemd[1]: systemd 255.4-1ubuntu8.4 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -BPF_FRAMEWORK -XKBCOMMON +UTMP +SYSVINIT default-hierarchy=unified)
[ 10.529928] systemd[1]: systemd-pcrextend.socket - TPM2 PCR Extension (Varlink) was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
[ 10.552649] systemd[1]: systemd-pcrmachine.service - TPM2 PCR Machine ID Measurement was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
[ 10.553179] systemd[1]: systemd-tpm2-setup-early.service - TPM2 SRK Setup (Early) was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
[ 10.622296] systemd[1]: systemd-tpm2-setup.service - TPM2 SRK Setup was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
efi-readvar -v PK
root@ubuntu:/home/ubuntu# efi-readvar -v PK
Variable PK, length 640
PK: List 0, type X509
Signature 0, size 612, owner eea2f5d2-c835-4e8c-ae00-c1605a53bb43
Subject:
CN=ASRock Inc.
Issuer:
CN=Root Agency
efi-readvar -v KEK
root@ubuntu:/home/ubuntu# efi-readvar -v KEK
Variable KEK, length 2265
KEK: List 0, type X509
Signature 0, size 1532, owner 77fa9abd-0359-4d32-bd60-28f4e78f784b
Subject:
C=US, ST=Washington, L=Redmond, O=Microsoft Corporation, CN=Microsoft Corporation KEK CA 2011
Issuer:
C=US, ST=Washington, L=Redmond, O=Microsoft Corporation, CN=Microsoft Corporation Third Party Marketplace Root
KEK: List 1, type X509
Signature 0, size 677, owner 26dc4851-195f-4ae1-9a19-fbf883bbb35e
Subject:
CN=Incus OS - Secure Boot KEK R1, O=Linux Containers
Issuer:
CN=Incus OS - Secure Boot E1, O=Linux Containers
efi-readvar -v db
root@ubuntu:/home/ubuntu# efi-readvar -v db
Variable db, length 4632
db: List 0, type X509
Signature 0, size 1572, owner 77fa9abd-0359-4d32-bd60-28f4e78f784b
Subject:
C=US, ST=Washington, L=Redmond, O=Microsoft Corporation, CN=Microsoft Corporation UEFI CA 2011
Issuer:
C=US, ST=Washington, L=Redmond, O=Microsoft Corporation, CN=Microsoft Corporation Third Party Marketplace Root
db: List 1, type X509
Signature 0, size 1515, owner 77fa9abd-0359-4d32-bd60-28f4e78f784b
Subject:
C=US, ST=Washington, L=Redmond, O=Microsoft Corporation, CN=Microsoft Windows Production PCA 2011
Issuer:
C=US, ST=Washington, L=Redmond, O=Microsoft Corporation, CN=Microsoft Root Certificate Authority 2010
db: List 2, type X509
Signature 0, size 679, owner 26dc4851-195f-4ae1-9a19-fbf883bbb35e
Subject:
CN=Incus OS - Secure Boot 2025 R1, O=Linux Containers
Issuer:
CN=Incus OS - Secure Boot E1, O=Linux Containers
db: List 3, type X509
Signature 0, size 678, owner 26dc4851-195f-4ae1-9a19-fbf883bbb35e
Subject:
CN=Incus OS - Secure Boot 2026 R1, O=Linux Containers
Issuer:
CN=Incus OS - Secure Boot E1, O=Linux Containers
db: List 4, type SHA256
Signature 0, size 48, owner 26dc4851-195f-4ae1-9a19-fbf883bbb35e
Hash:04bd4b3a85758ef37b9fdd6b65a2dd8820c2badfc868e21441e3ff8eab339a81
Tried the same with a Lexar USB stick. Worked fine. Guess something is up/different with that samsung t7. See output in my previous post if you want to investigate but don’t do that for me. I just wanted to get it running.
I’ve got some T7 SSDs on some dev systems here, but not on anything we’re using for IncusOS (they’re riscv64 system).
It’s interesting that the Lexar worked though. My first guess was going to be some issue with the xhci controller as I don’t know that we have the renesas xhci driver in the initrd.
